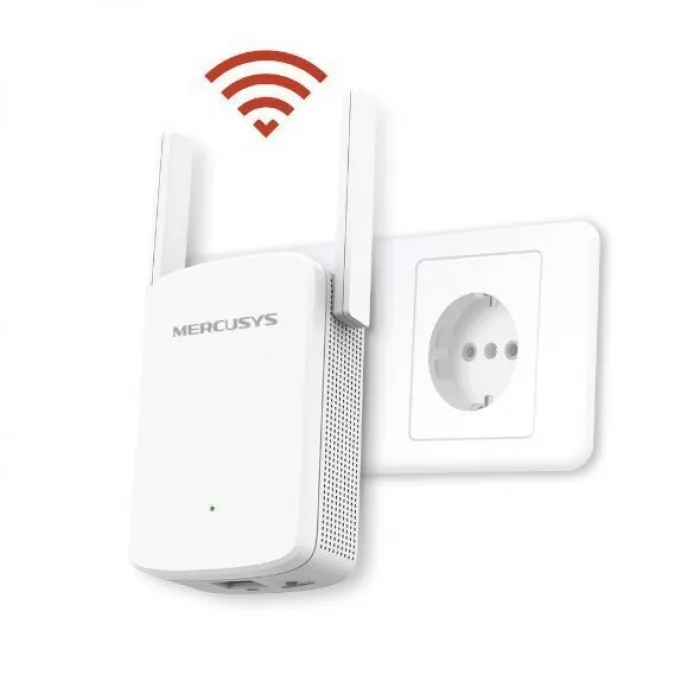

Mercusys MERCUSYS ME30
Wireless
Wireless Standards IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Frequency 2.4 – 2.5 GHz, 5 GHz
WiFi Speeds Up to 1200 Mbps (867 Mbps on 5 GHz, 300 Mbps on 2.4 GHz)
Reception Sensitivity 5 GHz:
11ac HT80 MCS9 < -63 dBm
2.4 GHz:
11n HT40 MCS7 < -70 dBm
Transmission Power < 20 dBm
Wireless Security WPA-PSK/WPA2-PSK
Hardware
Dimensions 112 x 84.7 x 39 mm
Interfaces 1x 10/100Mbps RJ45 Port
Button RESET/WPS Button
Antenna Type 2x External Antennas
Power Consumption 9.2 W
Others
Certifications CE, RoHS
Package Contents Wi-Fi Range Extender (ME30)
Quick Installation Guide
Environment Operating Temperature: 0C-40C (32F-104F)
Operating Humidity: 10%-90% Non-Condensing
Download MERCUSYS ME30 Datasheet
