- Model Name:

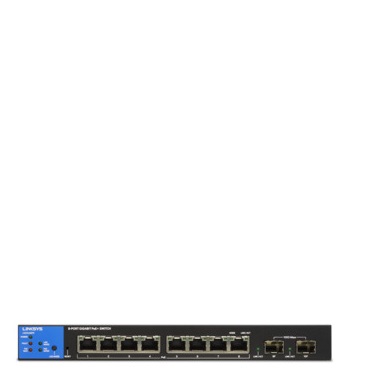

LGS310MPC - Routing:
Static Routing, IPv4 (63 max entries), IPv6 (21 max entries) - Ports:
- 8 Gigabit Ethernet
- 2 Gigabit SFP
- Memory:
256MB - LEDs:
Power, Fault, PoE Max, LAN Mode, PoE Mode - Forwarding Rate:
14.88 Mpps - Switching Capacity:
20 Gbps - MAC Address Table Size:
8K - Jumbo Frame (FE, GE):
10Kbytes - Dimensions (LxWxH):
- 240 x 105 x 27 mm
- 9.45 x 4.13 x 1.06 in
- Weight:
636 g (1.40 lb) - Power Consumption:
133.77W - Power Dedicated to PoE+:
110W - Power Input:
- 100?240V
- 50?60 Hz
- 2.2A
- Power Saving:
EEE - Operating Temperature:
0 to 40?C (32 to 104?F) - Storage Temperature:
-20 to 70?C (-4 to 158?F) - Operating Humidity:
10 to 90% RH - Storage Humidity:
5 to 95% RH (non-condensing)
- Spanning Tree:
IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s Multiple Spanning Trees (16 instances) - Link Aggregation:
IEEE 802.3ad LACP, up to 8 groups with up to 8 ports per group - VLAN:
Port-based and 802.1q VLANs, Management VLAN, Guest VLAN support - Number of VLANs Supported:
256 active VLANs (4,096 range) - Auto Voice VLAN:
Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels - IGMP Snooping:
IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups - HOL Blocking Prevention:
Head of line (HOL) blocking prevention - Port Mirroring:
Traffic on multiple ports (up to 3 ports) can be mirrored to another port for analysis with a network analyzer - Security Features:
- 802.1x Radius authentication
- DHCP snooping
- IP-MAC binding
- Port Security (256 max entries per port)
- DOS Attack Prevention
- Port Isolation (Protected Ports)
- Storm Control:
Support broadcast/unknown multicast/unknown unicast 16kbps~1000Mbps: in steps of 16kbps - Quality Of Service:
- 8 hardware queues
- Strict, Weighted Round Robin (WRR)
- Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based
- Access Control:
Ingress, MC Based ACL, IPv4 Based ACL, IPv6 Based ACL, ACL Binding, Action: permit/deny - RMON:
Embedded remote monitoring (RMON 1, 2, 3, 9) software agent support for enhanced traffic management, monitoring, and analysis - Management Interface:
- HTTP
- HTTPS
- Other Management:
Telnet, SSH, DHCP client, system log, configuration upload and backup via HTTP or TFTP, PING, Traceroute, dual images, SNTP - SNMP:
- Version 1
- Version 2c
- Version 3
- Firmware Upgrade:
Web Browser (HTTP/HTTPS) - Rate Limiting:
Rate limit according to network speed, 12kbps~1000Mbps: in steps of 16kbps - Warranty and Support:
- 5 Year Warranty (most countries)
- 2 Year Warranty (Australia and New Zealand)
