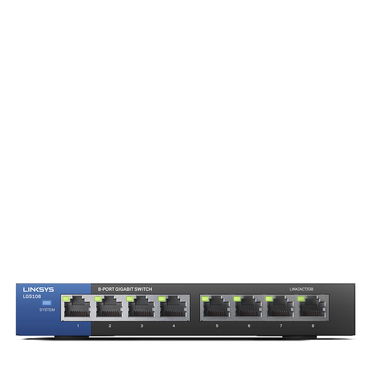

- Model Name:
LGS108 - Network Standards:
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3az
- Ports:
8 Gigabit Ethernet (10/100/1000) Ports - LEDs:
Link and activity indicators - Performance:
- Full line rate and forwarding rate of 64B frame at:
- 1.488 Mpps for 1000M port
- 0.1488 Mpps for 100M port
- 0.01488 Mpps for 10M port
- MAC Address Table Size:
4,000 entries - Bandwidth:
16 Gbps (non-blocking) - Fans:
None - Minimum System Requirements:
Connected devices need Ethernet connectivity and Ethernet cables - Dimensions (LxWxH):
168 x 90 x 26 mm - Weight:
0.358 kg - Power:
100-240VAC, 50/60Hz, 5VDC
- Power Consumption:
0.997W/3.355W - Power Consumption:
1.07W / 3.53W - Power Input:
12V 0.5A - Power Saving:
Cable connected detection, cable length detection, sleep mode. - 2 Monitors:
External - Operating Temperature:
0?50?C - Storage Temperature:
-40?70?C - Operating Humidity:
10?90% (non-condensing) - Storage Humidity:
10?90% (non-condensing) - Mounting:
Wall - Regulatory Compliance:
FCC Class B, CE - Warranty and Support:
5 Year Warranty
