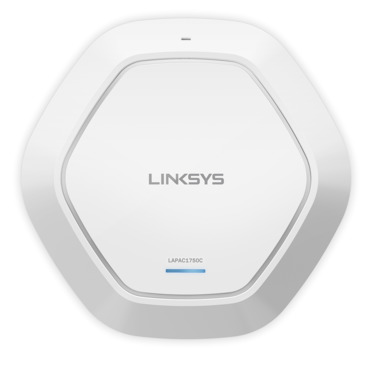

Linksys LAPAC1750C-EU Business AC1750 Dual-Band Cloud Wireless Access

Linksys LAPAC1750C-EU Business AC1750 Dual-Band Cloud Wireless Access

• Model Name:
  LAPAC1750C
• Key Features:
  • Multiple SSIDs (8)
  • VLAN Support
  • Number of VLANs (8)
  • SSID to VLAN Mapping
  • Dynamic Channel Selection
  • Captive Portal with Splash Page
  • WPA2 PSK, WPA2 Enterprise
  • WPA, WPA2
  • Client Blocking per SSID (20 Clients per SSID)
  • Rogue AP Detection
  • Wireless Client Isolation
  • Bandwidth Limit per SSID
  • Band Steering
  • Real-time Bandwidth Statistics
  • Management Interface
  • Event Notification
  • Network Diagnostics
• Network Standards:
  • IEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.3, 802.3u, and 802.3at
  • Power over Ethernet Plus (PoE+) IEEE 802.3at
• Radio Frequency Bands:
  2.4GHz and 5GHz (Concurrent)
• Ports:
  • 1 x Gigabit LAN Port with IEEE 802.3at PoE+
  • 1 x 12V/1.5A power port
• LEDs:
  1 x System LED
• Buttons:
  Reset Button
• MIMO:
  3×3
• Antenna Type:
  Internal PCBA Antenna
• Antenna Gain:
  1.7dBi @2.4G, 1.9dBi @5G
• RF Transmit Power:
  High Power PA
• Radio Frequency Channels:
  • 2.412 to 2.462 GHz: 11 channels
  • 5.180 to 5.240 GHz: 4 channels
  • 5.745 to 5.825 GHz: 5 channels
• Receive Sensitivity:
  • 2.4GHz = 802.11b @ 11Mbps: -85dBm, 802.11g @54Mbps: -73dBm, 802.11n 20MHz @MCS7: -67dBm, 802.11n 40MHz @MCS7: -65dBm
  • 5GHz = 802.11a @54Mps: -73dBm, 802.11n 20MHz @MCS7: -70dBm, 80211n 40MHz @MCS7: -68dBm, 802.11ac 20MHz @MCS8: -66dBm, 80211ac 40MHz @MCS9: -61dBm, 802.11ac 80MHz @MCS9: -58dBm
• Maximum Power Consumption:
  15W
• Dimensions (LxWxH):
  9.57 x 9.33 x 1.72 inches

• Weight:
  1.12lb
• Operating Temperature:
  0 to 40C (32 to 104F)
• Storage Temperature:
  -20 to 70C (-4 to 158F)
• Operating Humidity:
  10% to 85% non-condensing
• Storage Humidity:
  10% to 90% non-condensing
• Mounting:
  • Ceiling
  • Wall
• Security Features:
  • Multiple SSIDs (8)
  • SSID Broadcast
  • SSID to VLAN Mapping (8)
  • Wi-Fi Protected Access (WPA/WPA Mixed, WPA2) Personal and Enterprise
  • Wireless Client Isolation
  • Client Blocking per SSID (20 per SSID)
  • Rogue AP Detection
• Security Lock:
  Kensington Security Lock
• Quality Of Service:
  • WMM
  • Bandwidth Management per SSID
• Regulatory Compliance:
  FCC, CE
• Advanced Features:
  • Dynamic Channel Selection
  • Band Steering
  • Dual Image Support
  • Captive Portal with Splash Page
• Event Notification:
  Remote Syslog, and Email Alert
• Warranty and Support:
  Limited Lifetime Warranty (applies in all countries except: France, Germany and Spain – 5 year warranty and Australia New Zealand – 2 year warranty.)
• Centralized Management System:
  Cloud (via Web Browser)
