Specification

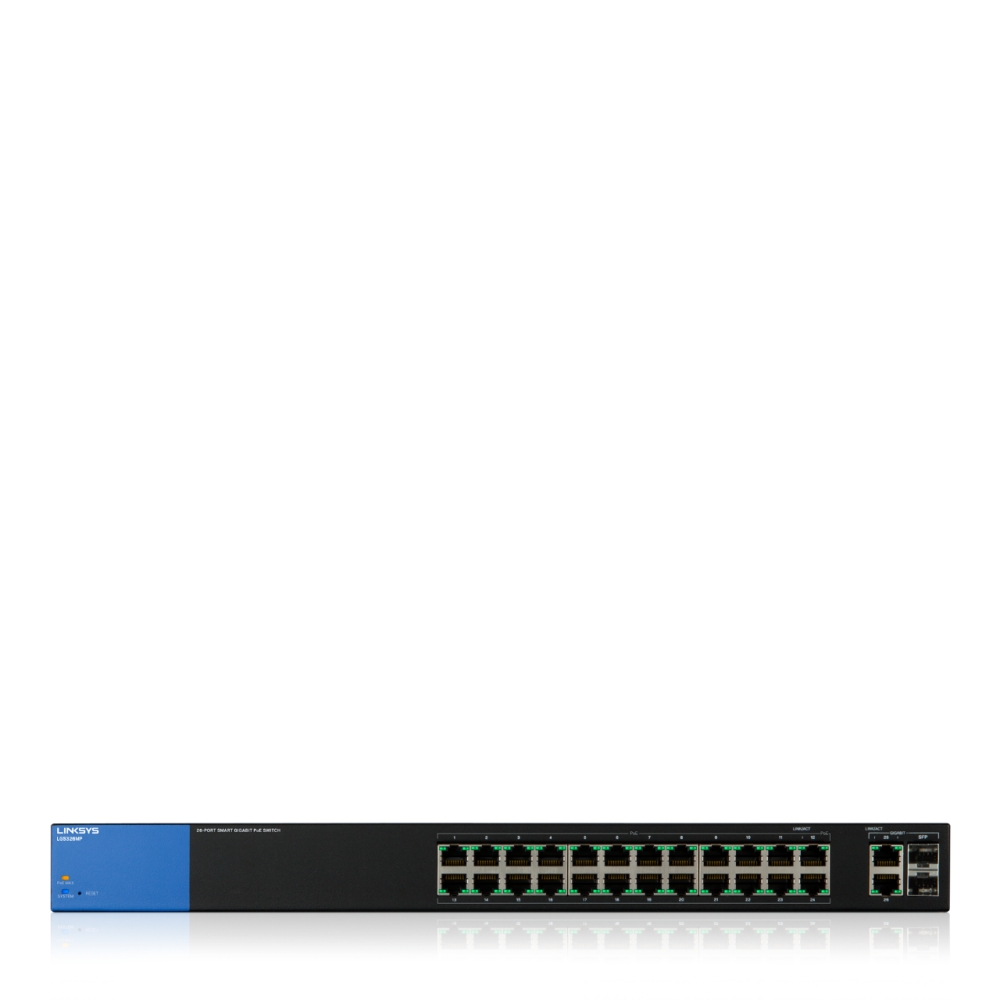

| Linksys Business LGS326MP – switch – 26 ports – smart | |
|---|---|
| Device Type | Switch – 26 ports – smart |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 2 x combo SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 384 W |
| Performance | Switching capacity: 52 Gbps ? Forwarding performance: 38.69 Mpps |
| Capacity | Active VLANs: 128 ? QoS hardware entries: 4 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9000 bytes |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP |
| Features | Flow control, VLAN support, IGMP snooping, port mirroring, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Quality of Service (QoS), Link Aggregation Control Protocol (LACP), Port Security, IP-MAC binding, DHCP client, Energy Efficient Ethernet, dual firmware images, DiffServ Code Point (DSCP) support, 3 fans, system log, Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 44 cm?x?20 cm?x?4.4 cm |
| Weight | 3.14 kg |
| Localisation | United Kingdom |
| Manufacturer Warranty | Limited lifetime warranty |
Extended Specification
| General | |
|---|---|
| Authentication Method | RADIUS |
| Capacity | Active VLANs: 128 ? QoS hardware entries: 4 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az |
| Device Type | Switch – 26 ports – smart |
| Enclosure Type | Desktop |
| Features | Flow control, VLAN support, IGMP snooping, port mirroring, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Quality of Service (QoS), Link Aggregation Control Protocol (LACP), Port Security, IP-MAC binding, DHCP client, Energy Efficient Ethernet, dual firmware images, DiffServ Code Point (DSCP) support, 3 fans, system log, Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention |
| Jumbo Frame Support | 9000 bytes |
| MAC Address Table Size | 8K entries |
| Performance | Switching capacity: 52 Gbps ? Forwarding performance: 38.69 Mpps |
| PoE Budget | 384 W |
| Ports | 24 x 10/100/1000 (PoE+) + 2 x combo SFP |
| Power Over Ethernet (PoE) | PoE+ |
| RAM | 128 MB |
| Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Status Indicators | System, PoE, link/activity |
| Subtype | Gigabit Ethernet |
| Dimensions & Weight | |
|---|---|
| Depth | 20 cm |
| Height | 4.4 cm |
| Weight | 3.14 kg |
| Width | 44 cm |
| Environmental Parameters | |
|---|---|
| Humidity Range Operating | 10 – 90% |
| Humidity Range Storage | 10 – 90% (non-condensing) |
| Max Operating Temperature | 50 ?C |
| Max Storage Temperature | 70 ?C |
| Min Operating Temperature | 0 ?C |
| Min Storage Temperature | -40 ?C |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 26 x 1000Base-T RJ-45 24 ports (PoE+) ? 2 x 1000Base-X SFP |
| Manufacturer Warranty | |
|---|---|
| Service & Support | Limited warranty – lifetime |
| Miscellaneous | |
|---|---|
| Localisation | United Kingdom |
| Power | |
|---|---|
| Voltage Required | AC 120/230 V (50/60 Hz) |
