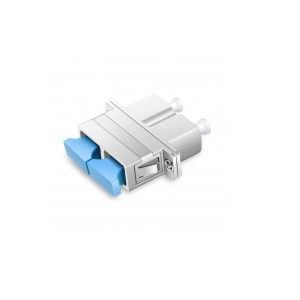

LC-SC Hybrid SM/MM Duplex Metal Fiber Optic Adapter, Female to Female
Fiber optic adapter, sometimes also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
The LC-SC Hybrid Fiber Optic Adapter is a special style of fiber optic adapter that supports precision connection of different types of fiber optic connectors. It is specially designed to incorporate the Small Form Factor LC into SC configured environment. The compact design enables network operators to reduce cost via space-savings, and by eliminating hybrid cable assemblies.
Description
Connector 1
LC Female
Connector 2
SC Female
Body Style
Duplex
Fiber Mode
Singlemode/Multimode
Insertion Loss
?0.3dB
Durability
1000 times
Flammability Rate
UL94-V0
Working Temperature
-25~70?C
