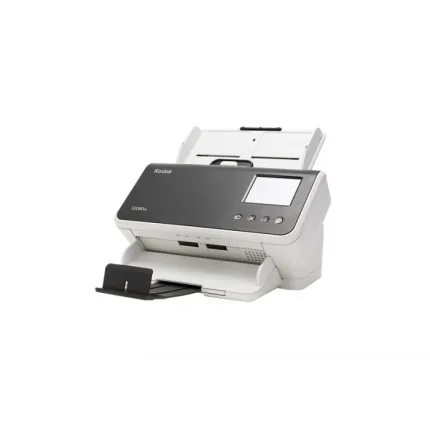

Kodak Kodak S2080w
Description
Product Highlights
- Network models, including wireless connectivity, enable multiple users to easily share scanners in a distributed environment. Integrate easily using our Web API, so no device drivers need to be installed on the host computer, tablet, or mobile device.
Throughput Speeds *
- 80 ppm / 160 ipm
Feeder Capacity
- Up to 80 sheets of 80 g/m² (20 lb.) paper
Connectivity
- USB 3.2 Gen 1×1
- USB 2.0 compatible
- Wireless Network 802.11 b/g/n and 10/100 Ethernet
Maximum Document Size
- 216 mm x 3000 mm (8.5 in. x 118 in.)
Minimum Document Size
- 52 mm x 52 mm (2.05 in. x 2.05 in.)
Paper Thickness & Weight
- 27–433 g/m² (7.2–160 lb.) paper
- Hard card thickness up to 1.25 mm (0.05 in.)
Maximum Optical Capture Resolution
- 600 dpi
Accessories & Consumables
- Stacking Deflector Accessory
- Integrated A4/Legal Flatbed
- KODAK A3 Size Flatbed Accessory
- Passport Flatbed Accessory
- Carrier Sleeves (5 PACK)
- Feed Roller Kit
- Pre-Separation Pad & Roller Kit
Acoustical Noise
- Off or Ready mode: < 20 dB(A)
- Scanning: <50 dB(
Barcode Reading
- Codabar
- Code 128
- Code 3 of 9
- EAN-13
- EAN-8
- Interleaved 2 of 5
- PDF417
- QR
- UPC-A
- UPC-E
Bundled Software
- Capture Pro Limited Edition
- Smart Touch
Data Security
- This scanner processes scanned data exclusively through volatile memory ensuring image data is effectively erased upon shut down. Read more about data security.
Dimensions & Weight
- Weight: 3.3 kg (7.2 lbs.) Depth: 204 mm (8.0 in.), not including input tray and output tray
- Width: 312 mm (12.3 in.) Height: 182.5 mm (7.2 in.), not including input tray
- Depth with Input Tray: 269 mm (10.6 in.)
- Height with Input Tray: 231.6 mm (9.1 in.)
Electrical Requirements
- 100-240 V (International); 50-60 Hz
Environmental Certification
- 2008 EuP
- ENERGY STAR Qualified
- EPEAT Gold
File Format Outputs
- BMP
- JPEG
- Single-page TIFF
- Microsoft Excel
- Microsoft Word
- Multipage TIFF
- Text searchable PDF
- PNG
- RTF
Image Output Resolution Options
- Up to 1200 dpi
Network Protocols
- DHCP (or static IP)
- TCP/IP
Operating System Compatibility
- WINDOWS Server 2012 R2 X64 Editions
- WINDOWS Server 2016 X64 Editions
- WINDOWS 7 SP1 (32-bit and 64-bit)
- WINDOWS 8.1 (32-bit and 64-bit)
- WINDOWS 10 (32- and 64-bit)
- WINDOWS XP SP3 (32-bit and 64-bit) (available only in China)
- Ubuntu 16.04 64-bit and 32-bit
- Ubuntu 18.04 64-bit
- Open SUSE 11.3 (i586) 32-bit
- Open SUSE LEAP 15.1 64-bit
- SUSE Linux Enterprise Desktop 12.2 64-bit
- SUSE Linux Enterprise Desktop 15 SP1 for 64-bit
- Neokylin V7 (Intel x86/x64 & MIPS only) (Available only in China)
- UOS (MIPS only) (Available in China only)
Operating Temperature / Operating Humidity
- Operating Temperature 10-35° C (50-95° F)
- Operating Humidity 15% – 80% RH
Operator Control Panel
- 3.5 inch (89 mm) graphical color touchscreen LCD with operator control buttons
Optional Software
- Capture Pro Software
- Info Input Solution
Paper Handling (SurePath) Features
- Controlled stacking
- Enhanced jam recovery
- Intelligent Document Protection
- Interactive multifeed with image display on host
- Length Multifeed Detection
- Ultrasonic Multifeed Technology
- Operator overrides
Perfect Page Image Enhancement Software
- Adaptive threshold processing
- Add or remove border
- Aggressive cropping
- Auto white balance
- Autocrop
- Automatic Brightness/Contrast
- Automatic color balance
- Automatic color detection
- Automatic orientation
- Automatic photo cropping
- Background color smoothing
- Barcode reading
- Black and white image segmentation
- Brightness and contrast adjustment
- Content-based blank page removal
- Deskew
- Digital stamping
- Dual stream scanning
- Electronic color dropout
- Enhanced color adjustment
- Enhanced color management
- Fixed cropping
- Fixed thresholding
- Halftone removal
- Image edge fill
- Image hole fill
- Image merge
- Image split
- iThresholding
- Lone Pixel Noise Removal
- Long document scanning (up to 3000 mm/118 in.)
- Majority rule noise removal
- Multicolor dropout
- Multiple document output
- Orthogonal rotation
- Output Compression-CCITT Group IV, JPEG, Uncompressed Output
- Relative cropping
- Sharpening
- Sleeve scanning (for scanning A3 documents or multiple small documents)
- Streak filtering
Power Consumption
- Running: less than 36 watts
- Sleep Mode: less than 5.0 watts
- Standby: less than 0.5 watts
Recommended Daily Volume
- Up to 12,000 pages per day
Recommended PC Configuration
- Minimum PC configuration with scanning application: Intel Core i3 processor or faster, at least 4 GB RAM (Microsoft Windows)
Scanning Technology
- Dual RGB LED Illumination CIS (CMOS); Grayscale output bit depth is 256 levels (8-bit); color output bit depth is 24 bits (8 x 3); color capture bit depth is 48 bits (16 x 3)
Standard Software And Drivers
- Citrix certified
- KOFAX certified
- ISIS Drivers
- LINUX (TWAIN and SANE) Drivers
- TWAIN Drivers
- WIA Drivers
