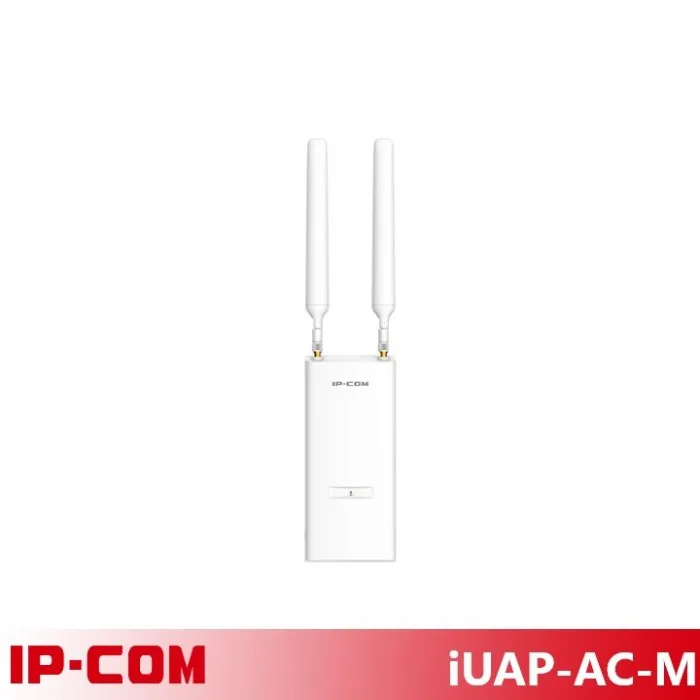

IP-COM IP-COM iUAP-AC-M
Product Information
- Model
- iUAP-AC-M
- Mounting
- Pole Mounting and Wall Mounting
- Dimensions
- 194.7*83*42.1 mm
Hardware Specifications
- Frequency band
- 2.4 GHz, 5 GHz
- Wireless standards
- IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
- 2.4 GHz data rate
- 1 – 300 Mbps
- 5 GHz data rate
- 6 – 867 Mbps
- Ethernet port
- 1*10/100/1000 Base-TX port
- Button
- 1*Reset
- LED indicator
- 1*SYS
- Waterproof level
- IP65
- Lightning protection
- 6000 V
- Max. power consumption
- 11.5 W (Full-load)
- Power supply standard
- IEEE 802.3af/at & 24V, 0.5A Passive PoE
- Antenna
- 2*5dBi, RP-SMA Connector
- 2.4 GHz Max. output power
- 26 +/- 1.5 dBm
- 5 GHz Max. output power
- 26 +/-1.5 dBm
- 802.11b RX sensitivity
- -93 dBm
- 2.4 GHz 802.11n (MCS7) RX sensitivity
- -72 dBm
- 5 GHz 802.11a RX sensitivity
- -93 dBm
- 5 GHz 802.11n (MCS7) RX sensitivity
- -74 dBm
