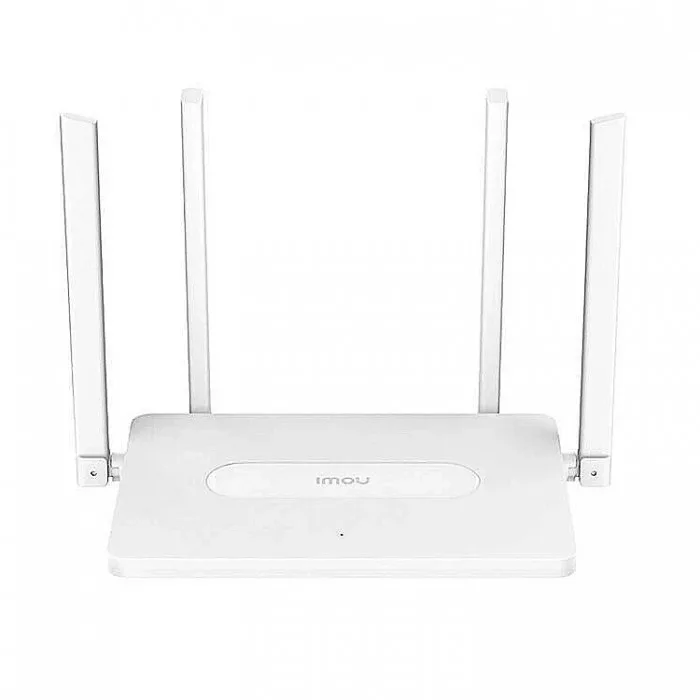

IMOU IMOU HR12G
Features
Dual-Band Wi-Fi, speed up to AC1200 (300+867Mbps)
4 external 5dBi antennas
1x Gigabit WAN, 3x Gigabit LAN
Connections：Maximum 64 clients，32recommended
Support Imou Camera Wi-Fi Auto-sync
Support “Imou-Link” Mesh
Support Stream Accelerate
Support IPv6
Support IPTV
Support Parental Control
Support Guest Wi-Fi
Support Imoulife App
Software
WAN Connection Type PPPoE/Dynamic IP/Static IP
IPv4/IPv6 √
VPN PP2P，L2TP QoS √
Management PC Web config page, mobile web config page, App DDNS √
DMZ √
Port Fword √
UPnP √
Others
Power Adapter DC12V1A
Dimention 188×120×26mm
Hardware
ROM 16MB
RAM 128MB
Network Port 1x Gigabit WAN + 3x Gigabit LAN
Button 1x WPS/Mesh, 1x Reset
LED Indicator two-color light (red and green)
Wi-Fi
Frequency 2.4GHz & 5GHz
Protocol 2.4GHz：IEEE 802.11b/g/n
5GHz：IEEE 802.11a/n/ac
Wi-Fi Speed 2.4GHz：300Mbps 5GHz：867Mbps
Wi-Fi Antennas 4 external 5dBi antennas
Wireless Security Support WPA-PSK/WPA2-PSK encription Support Hidden SSID
Other Features Wi-Fi schedule, Imou Camera Wi-Fi Auto-sync, “Imou-Link” Mesh, Stream Accelerate
