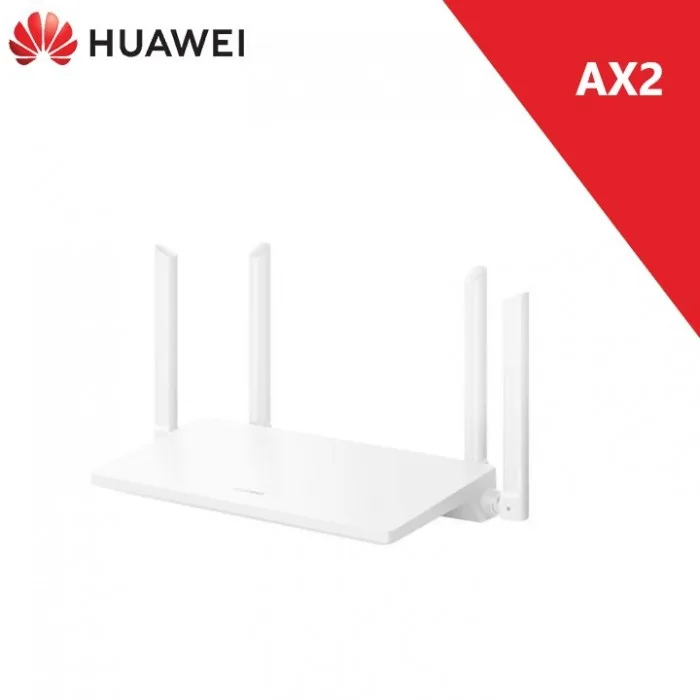

Huawei Huawei AX2
Description
Dimensions and Weight
Height
29 mm
Width
257.6 mm
Depth
163.5 mm
Wi-Fi
Transmission Standard:
802.11ax/ac/a/n 2 x 2 & 802.11b/g/n 2 x 2, MIMO
Wireless Transmission Rate:
up to 300 Mbit/s over a 2.4 GHz Wi-Fi network
up to 1201 Mbit/s over a 5 GHz Wi-Fi network
Wireless Frequency Band:
2.4 GHz & 5 GHz
Memory
128 Mbytes RAM + 128 Mbytes ROM
Network Port
three 10/100/1000 Mbps WAN/LAN ports, auto-adaptation
Interface
Power port, Network port, WPS/Reset button
LED Indicator
one LED Indicator
Power Supply
Power: < 12 W
AC / DC Power Supply: 12V DC, 1 A
Software Functions
APP:
HUAWEI AI Life APP
Features:
802.11kv protocol,IPv4/IPv6,Wi-Fi timer,Guest Wi-Fi,Device speed limiting,MAC address filter,Parental control,VPN pass through, DMZ/virtual server,PPPoE/DHCP/Static IP address/Bridge WAN connection methods
Security
WPA3 ,Wi-Fi access control, Guest Wi-Fi, SSID hidden, Firewall, DMZ, Parental Control
Environment
Temperature
Operating temperature: 0 C ~ 40 C,
storage temperature: -40 C ~ +70 C
Humidity
Operating humidity: 5% to 95% RH (non-condensing)
Storage humidity: 5% to 95%, non-condensing
Key
WPS/Reset, 2 in 1
Networking > Bridges & Routers” target=”_blank” style=”outline:none;”>Download Huawei AX2 Datasheet
