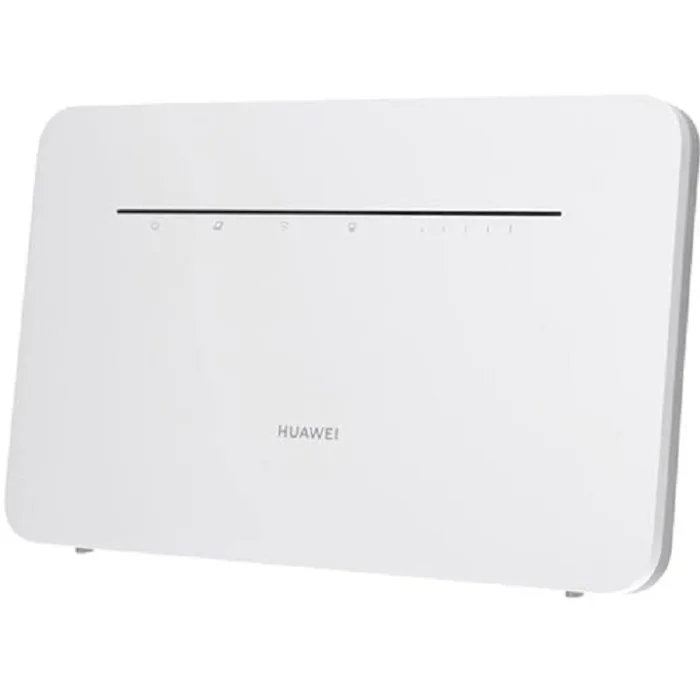

Huawei Huawei B535-232A
| HUAWEI B535-232A 4G Router 3 Pro Specifications | |
|---|---|
| Dimensions | |
| Size | 219 mm x 138 mm x 25.6 mm |
| Color | White |
| 5G / 4G | |
| Communication Standard | 3GPP Release 11, LTE CAT7 |
| Applicable Network | 4G |
| 4G Transmission Rate | 300 Mbps (DL) / 100 Mbps (UL) Theoretical value. Actual rate depends on the operator. |
| Network Frequency Band | LTE: B1 / B3 / B7 / B8 / B20 / B28 / B32 / B38 UMTS: B1 / B8 |
| Antenna Type | LTE / UMTS main and diversity antennas |
| Wi-Fi | |
| Transmission Standard | 802.11ac/a/n 2×2 & 802.11b/g/n 2×2, MIMO |
| Wireless Transmission Rate | DBDC, 1167 Mbps |
| Wireless Frequency Band | 2.4 GHz & 5 GHz, band steering |
| Antenna Type | Dual-band Wi-Fi antenna |
| Antenna (External) | |
| Extension Ports | Two 4G antenna extension ports (antennas sold separately) |
| Processors | |
| Chips | Balong chip, Gigahome dual-band Wi-Fi chip |
| Network & SIM | |
| Ports | 1 WAN / LAN GE port 3 LAN GE ports 1 SIM card slot (Micro-SIM) |
| Buttons | |
| Functions | Reset, Power, H (HiLink one-button pairing, WPS compatible) |
| LED Indicators | |
| Indicators | 4G, Wi-Fi, LAN, Power, Signal Strength |
| Power Supply | |
| Power Consumption | < 12W |
| Input | AC: 100V–240V 50/60Hz DC: 12V / 1A |
| Environmental Conditions | |
| Operating Temperature | 0C to 40C |
| Storage Temperature | -20C to +70C |
| Humidity | 5% – 95% (non-condensing) |
| Packing List | |
| Included | HUAWEI 4G Router 3 Pro x1 Power Adapter x1 Socket x1 Quick Start Guide x1 |
| Optional | Ethernet Cable x1, Warranty Card x1 |
