HP Dubai – Terrabyt.com HPE ProLiant DL580
Technical Specifications
Processor Core Available20, per processor
Processor Cache Installed27.5 MB
Memory TypeHPE DDR4 SmartMemory and HPE Persistent Memory
Network Controller1 HPE 1 Gb 366FLR Ethernet adapter, 4-ports per controller
Remote Management SoftwareHPE iLO Standard with Intelligent Provisioning (embedded) and HPE OneView Standard (requires download) are included Optional: HPE iLO Advanced, HPE iLO Advanced Premium Security Edition and HPE OneView Advanced (optional require licenses)
Power Supply Type4 HPE 1600W Flex Slot Platinum hot plug power supplies
Expansion Slots3 PCIe 3.0, for detailed descriptions refer the QuickSpecs
Storage ControllerHPE Smart Array P408i-p SR Gen10 Controller
Warranty Standard Statement3/3/3 – Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support
Processor NameIntel® Xeon® Scalable 6230 (20 core, 2.1 GHz, 27.5 MB, 125 W)
Processor Number4 processors included
Processor Speed2.1 GHz
Standard Memory256 GB (8x 32 GB) RDIMM
Hard Drive Number (included)None included, 8 large form factor drives supported
Form FactorRack (4U)
Weight (imperial)114 lb
Weight (metric)51.71 kg
Product Dimensions (imperial)6.88 x 17.54 x 29.60 in
Product Dimensions (metric)17.47 x 44.55 x 75.18 cm

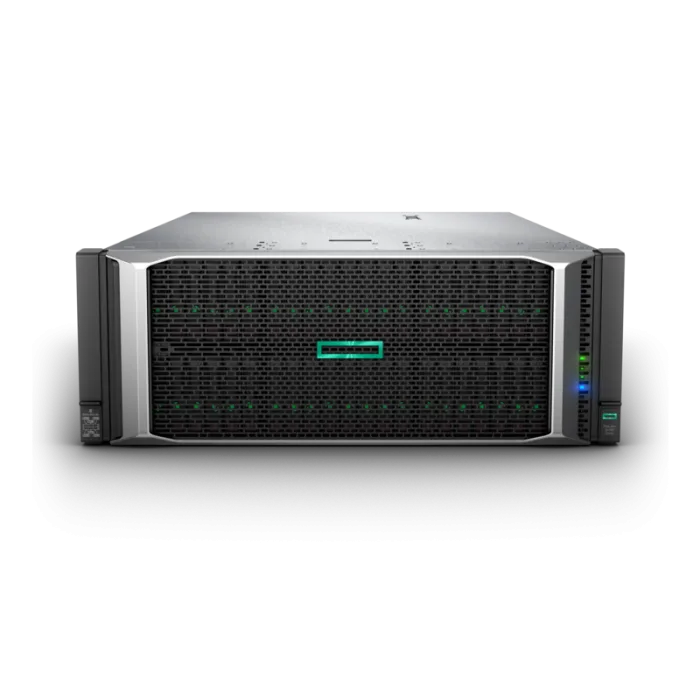

Detailed Product DescriptionHPE ProLiant DL580 Gen10 server with four Intel® Xeon® 6230 processors, 256 GB memory, eight large form factor drive bays and four 1600W power supplies
