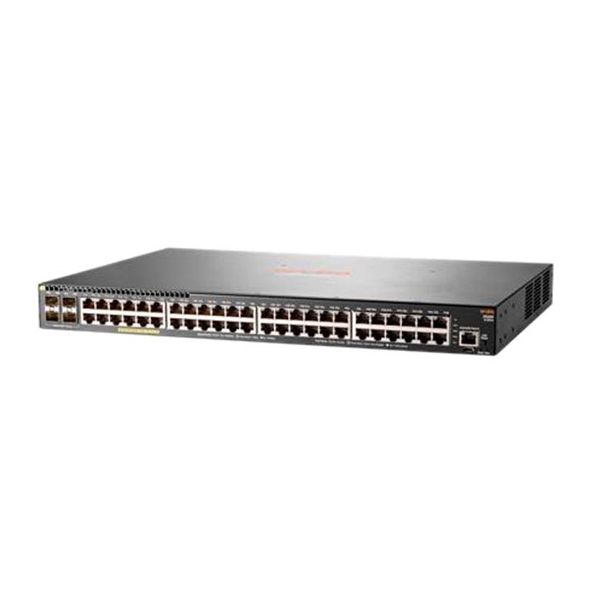

HPE JL256A – Aruba 2930F Switch
Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users with an integrated wired and wireless approach. These basic Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave and are ideal for enterprise edge, SMB and branch offices. A powerful Aruba ProVision ASIC delivers performance and value supporting the latest SDN applications with future proof programmability. The 2930F supports 10GbE uplinks, PoE+, robust QoS, RIP routing, Access OSPF, ACLs, Tunneled Node and IPv6. This JL256A has 48x 10/100/1000 PoE+ ports and 4x 1000/10G SFP+ transceiver slots for high speed connectivity. PoE+ is supported with a power budget of 370 Watts.
| Product Code | JL256A |
|---|---|
| Type | Aruba 2930F 48G PoE+ 4SFP+ Switch |
| I/O ports and slots | ?48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX,
IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) Duplex: 10BASE-T/100BASETX: half or full?1000BASE-T: full only 4 SFP+ 1/10GbE ports; PHY-less |
| Additional ports and slots | 1 dual-personality (RJ-45 or USB micro-B) serial console port |
| Throughput | up to 112.0 Mp/s |
| Switching capacity | 176 Gb/s |
| Dimensions | 4.39 x 44.25 x 30.42 cm ( 1.73 x 17.42 x 11.98 in)
1U height |
| Weight | 4.46 kg ( 9.83 lb) |
| PoE Available Power | 370 W |
