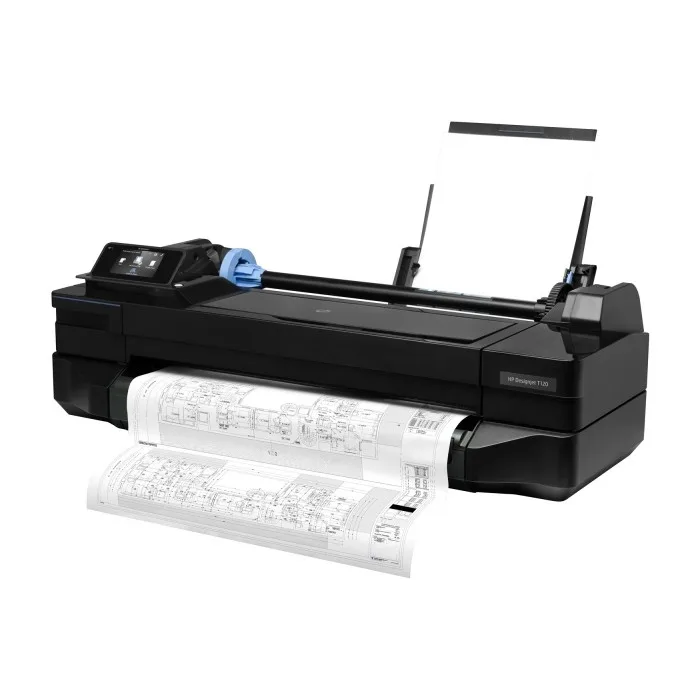

HP DesignJet T120 Printer
Print Line drawings3 70 sec/page on A1/D, 40 A1/D prints per hour
Color images4 Fast: 22.4 m2
/hr (241 ft2
/hr) on coated media
Best: 2.3 m2
/hr (25 ft2
/hr) on glossy media
Print resolution Up to 1200 x 1200 optimized dpi
Margins (top x
bottom x left x
right)
Roll: 5 x 5 x 5 x 5 mm (0.2 x 0.2 x 0.2 x 0.2 in)
Sheet: 5 x 17 x 5 x 5 mm (0.2 x 0.67 x 0.2 x 0.2 in)
Technology HP Thermal Inkjet
Ink types Dye-based (C, M, Y); pigment-based (K)
Ink drop 5.5 pl (C, M, Y); 12 pl (K)
Printheads 1 (C, M, Y, K)
Line accuracy +/- 0.1%5
Minimum line
width
0.04 mm (0.0016 in) (HP-GL/2 addressable)
Guaranteed minimum
line width
0.07 mm (0.0028 in) (ISO/IEC 13660:2001(E))6
Media Handling Sheet feed, roll feed, input tray, automatic cutter
Weight 60 to 280 g/m² (roll/manual feed); 60 to 220 g/m²
(input tray)
Size Rolls: 279 to 610 mm (11 to 24 in)
Sheets: 210 x 279 to 610 x 1897 mm (8.3 x 11 to
24 x 74.7 in)
Standard sheets: A4, A3, A2, A1 (A, B, C, D)
Thickness Up to 11.8 mil
Memory 256 MB
Connectivity Interfaces
(standard)
Fast Ethernet (100Base-T), Hi-Speed USB 2.0 certified,
Wi-Fi
Print languages
(standard)
HP PCL 3 GUI, JPEG
Printing paths Printer driver, HP Instant Printing, Apple AirPrint
Drivers (included) HP PCL 3 GUI driver for Mac OS X and Windows®
Dimensions
(w x d x h)
Printer 987 x 530 x 285 mm (38.9 x 20.9 x 11.2 in)
Shipping 1141 x 620 x 415 mm (44.9 x 24.4 x 16.3 in)
Weight Printer 25.5 kg (56.2 lb)
Shipping 30 kg (66.1 lb)
What’s in the
box
HP DesignJet T120 Printer, printhead, introductory ink cartridges, quick
reference guide, setup poster, startup software, power cord
Environmental
ranges
Operating temperature: 5 to 40�C (41 to 104�F)
Storage temperature: -25 to 55�C (-13 to 131�F)
Operating humidity: 20 to 80% RH
