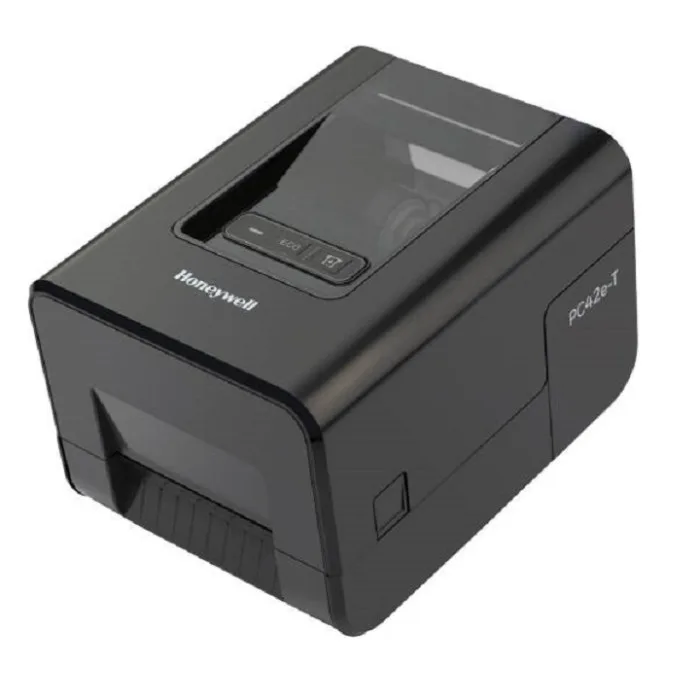

Honeywell Honeywell PC42E-T
| Category | Specification |
|---|---|
| Dimensions (L x W x H) | 10.74 in x 7.8 in x 6.6 in (273 mm x 198 mm x 168 mm) |
| Max Media Diameter | 5.0 in (127 mm) |
| Media Core Sizes | 1 in (25.4 mm); 1.5 in (38.1 mm) |
| Media Width | 1 in to 4.5 in (25.4 mm to 114 mm) |
| Min Label Length | 0.37 in (9.6 mm) |
| Max Print Length | 203 dpi: 190 in (4826 mm), 300 dpi: 85 in (2159 mm) |
| Ribbon Support | Coated side out |
| Max Ribbon Diameter | 2.7 in (68 mm) |
| Ribbon Core Sizes | 0.5 in |
| Ribbon Width | 1 in to 4.3 in (25.4 mm to 110 mm) |
| Max Ribbon Length | 300 m 1 in core; 74 m 0.5 in core |
| Print Resolution | 203 dpi (8 dots/mm) |
| Default Print Speed | 100 mm/s (4.0 ips) |
| Max Print Speed | 203 dpi: 6 ips |
| Max Print Width | 4.25 in (108 mm) |
| Standard Interfaces | USB Device, USB Host, Internal Ethernet |
| Options | USB to serial cable, Wi-Fi 5 & Bluetooth® 5.0 module |
| Protocols | TCP/IP, LPR/LPD, Telnet/SSH, FTP/SFTP, BOOTP, DHCP, HTTP/HTTPS, SMTP, IPv4 & IPv6 |
| Display | 1 Feed Button, 1 ECO Button, LED Indicators |
| Web Languages | English, Simplified/Traditional Chinese, German, French, Italian, Korean, Portuguese, Russian, Spanish, Japanese, Thai |
| Graphics Formats | 1-bit BMP, GIF, PCX, PNG |
| Barcode Symbologies | Aztec, Code 16K/49, Data Matrix, Dot Code, EAN-8/13, Grid Matrix, HIBC, MaxiCode, MSI, PDF417, QR, RSS, and more |
| Printer Languages | DP, DPL, ZSim2 (ZPL II), ESim (EPL), XML for SAP and Oracle |
| Drivers | Windows®, CUPS for Linux, SAP Device Types, BarTender®, Honeywell Tools |
| Character Sets | English, Latin, Arabic, Cyrillic, Greek, Thai, Vietnamese, etc. |
| Operating Temp | +41F to +104F (+5C to +40C) |
| Storage Temp | -40F to +140F (-40C to +60C) |
| Humidity | Operating: 10–80% RH, Storage: 10–90% RH (non-condensing) |
| Input Voltage | 90-264V AC |
| Output Power | 24V DC, 2.5 A |
| Memory | 128 MB Flash, 128 MB SDRAM |
| Accessory Options | Cutter, Peel-off Module, Roller |
| Certifications | CE, C TUV US, FCC, IC, CB, EN 62368-1, EMC Class A+ |
