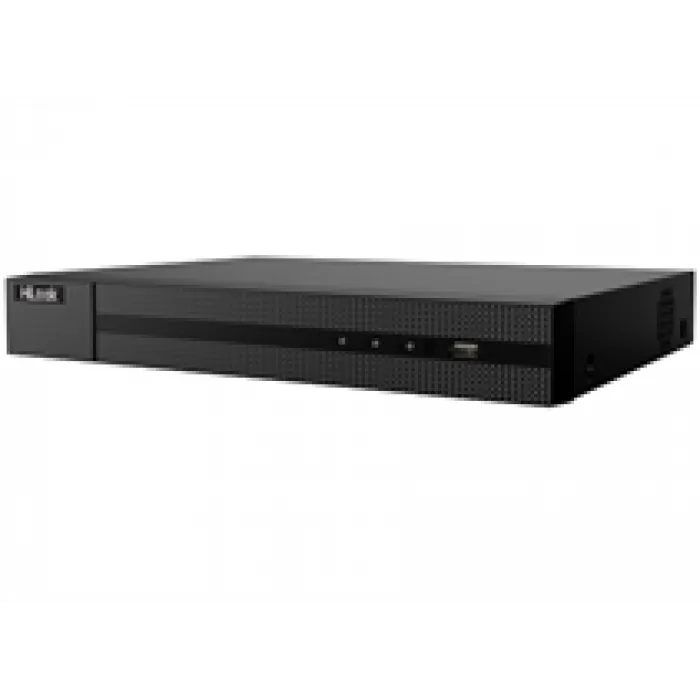

HiLook by Hikvision NVR-104MH-C
Video/Audio Input
Two-way audio input:
1-ch, RCA (2.0 Vp-p, 1kΩ)
IP video input:
4-ch
IP Video input:
Up to 8 MP resolution
Network
Incoming bandwidth:
40Mbps
Outgoing bandwidth:
80Mbps
Video/Audio Output
LCD/HDMI/VGA output resolution:
HDMI:
1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz;
VGA:
1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ;
HDMI/VGA simultaneous output
Recording Resolution:
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output:
1-ch, RCA (Linear, 1kΩ)
Synchronous Playback:
4-ch
Decoding
Capability:
1-ch @ 8 MP / 4-ch @ 1080p
Hard Disk
SATA:
1 SATA interface for 1 HDD
Capacity:
Up to 6TB capacity for each HDD
External Interface
Network Interface:
1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Interface:
2, USB2.0
General
Power Supply:
48 VDC
Power:
≤ 65 W
Consumption(without hard disk and POE):
≤ 10 W (without enabling PoE)
Working Temperature:
-10 oC ~ +55 oC (+14 oF~ + 131 oF)
Working Humidity:
10 % ~ 90 %
Chassis:
1U chassis
Dimensions:
315 × 240 × 48 mm (12.4″ × 9.4″ × 1.9″)
Weight(without HDD):
≤ 1 kg (2.2 lb)
