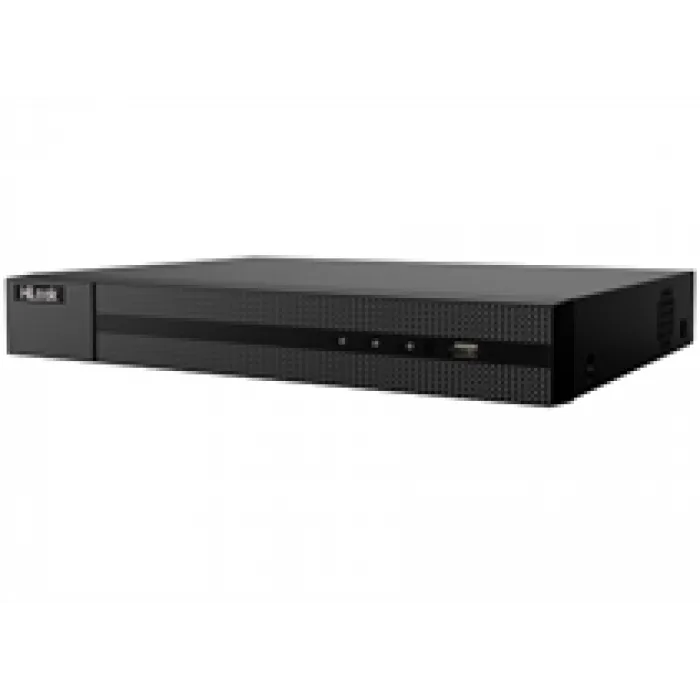

HiLook HiLook by Hikvision NVR-108MH-C/8POE
HiLook by Hikvision NVR-108MH-C/8POE
Video/Audio Input
Two-way audio input:
1-ch, RCA (2.0 Vp-p, 1kΩ)
IP video input:
8-ch
IP Video input:
Up to 8 MP resolution
Network
Incoming bandwidth:
80Mbps
Outgoing bandwidth:
80Mbps
Video/Audio Output
LCD/HDMI/VGA output resolution:
HDMI:
1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA:
1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Recording Resolution:
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output:
1-ch, RCA (Linear, 1kΩ)
Synchronous Playback:
8-ch
Decoding
Capability:
1-ch @ 8 MP / 4-ch @ 1080p
Live view / Playback:
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Hard Disk
SATA:
1 SATA interface for 1 HDD
Capacity:
Up to 6TB capacity for each HDD
External Interface
Network Interface:
1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Interface:
2, USB2.0
POE
Supported Standard:
AF and AT
Interface:
8 independent 10 /100 Mbps PoE Ethernet interfaces
Max. Power:
75W
