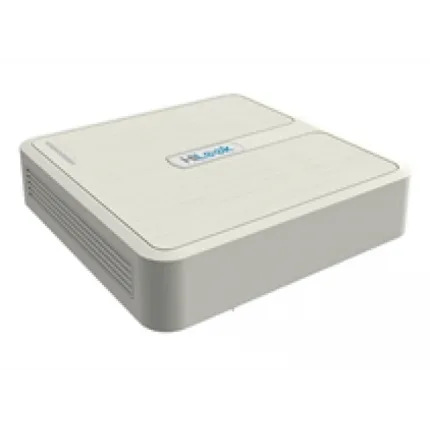

HiLook HiLook by Hikvision NVR 104 B
HiLook by Hikvision NVR-104-B
Video/Audio Input
Two-way audio input:
1-ch, RCA (2.0 Vp-p, 1kΩ)
IP video input:
4-ch
Network
Incoming bandwidth:
40Mbps
Outgoing bandwidth:
40Mbps
Video/Audio Output
HDMI/VGA output:
1-ch, resolution:
1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,
1024 × 768 /60Hz
Recording Resolution:
4 MP/3 MP/1080p/1.3 MP/UXGA/720p/VGA/4CIF /DCIF/2CIF/CIF/QCIF
Audio Output:
1-ch, RCA (Linear, 1kΩ)
Decoding
Capability:
2-ch@4 MP, 4-ch@1080p
Live view / Playback:
4 MP/3 MP/1080p/1.3 MP/UXGA/720p/VGA/4CIF /DCIF/2CIF/CIF/QCIF
Hard Disk
SATA:
1 SATA interface for 1 HDD
Capacity:
Up to 6TB capacity for each HDD
External Interface
Built-in switch network interface:
4 independent 100 Mbps built-in
switch network interfaces
Network Interface:
1 RJ-45 10 / 100 Mbps selfadaptive
Ethernet interface
USB Interface:
2, USB2.0
