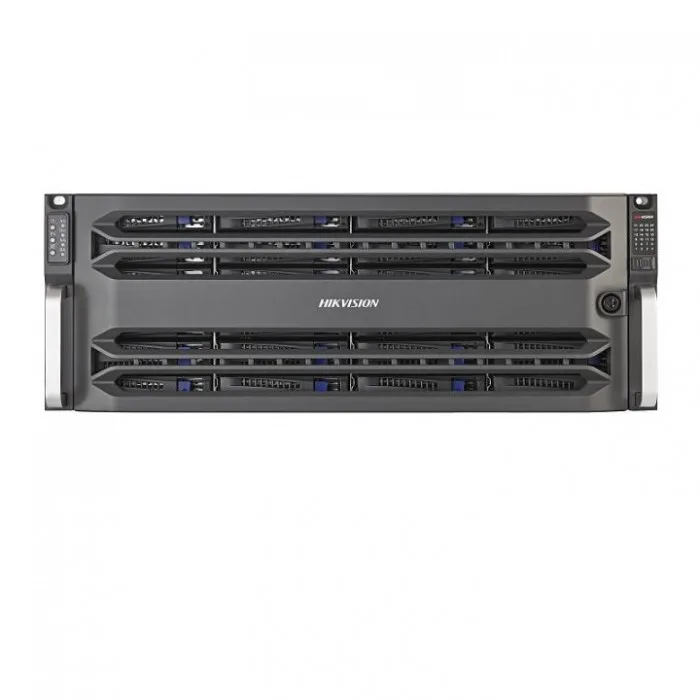

Hikvision Hikvision DS-A82024D
Network
Protocol iSCSI, RTSP, ONVIF, PSIA
External interface
USB 3
VGA 1
Data network interface 4, 1000M Ethernet interface (4 x 1GbE or 2 x 10GbE is extendable)/Controller
MiniSAS interface Supported
Management network interface 1, 1000M Ethernet interface/Controller
Storage
HDD slot 24
Interface/capacity SSD (optional), SAS/1TB, 2TB, 3TB, 4TB, 6TB,8TB,10TB,12TB,14TB,16TB
Hot-swapping Supported
HDD support Single, RAID(Enterprise Hard Disk)
RAID RAID0, 1, 3, 5, 6, 10, 50, JBOD, Hot-Spare
Performance
Direct Streaming Mode: video (2 Mbps) + picture 448-ch (recording + playback)
IPSAN Mode 256-ch (recording + playback)
Video performance 448
Picture performance 448
Hardware
Structure Dual controller
Processor 64-bit multi-core processor
Cache 8 GB (extendable to 32 GB)/controller
Storage Management
Disk management Disk inspection, alarm and repair
Logical volume management iSCSI volume, video volume management
Recording Management
Recording mode Timing recording, manual recording, dual-stream recording, alarm recording
Video protection Lock key video, N+1 service protection, ANR, video loss detection and alarm
Searching mode Search by time and event
Downloading mode Quick download, batch download, download by segment, download by merging
Device Maintenance
Management mode Web-based GUI, serial port CLI, centralized management of multiple devices
Alarm mode Sound, light, email, message, web page
Log downloading Download no web page
HDD
HDD Model Seagate,ST16000NM004J,16T;
Seagate,ST10000NM018B,10T;
Seagate,ST8000NM018B,8T;
Seagate,ST6000NM020B,6T;
Seagate,ST4000NM001B,4T;
General
Power supply Redundant
Chassis 19-inch 4U
Consumption(with HDDs) Working: < 507 W (1729 BTU with 24 HDDs); Rated: < 800 W
Environment temperature Working: +5 C to +35 C (41 F to 95 F); Storing: -20 C to +70 C (-4 F to 158 F)
Humidity Working: 20% to 80%RH (non-condensing/frozen); Storing: 5% to 90%RH (non-condensing/frozen)
Dimensions(W x D x H) 447 x 172 x 550 mm (17.6 x 6.8 x 21.7 in)
Weight (without HDDs) < 33.5 Kg (73.9 lb)
