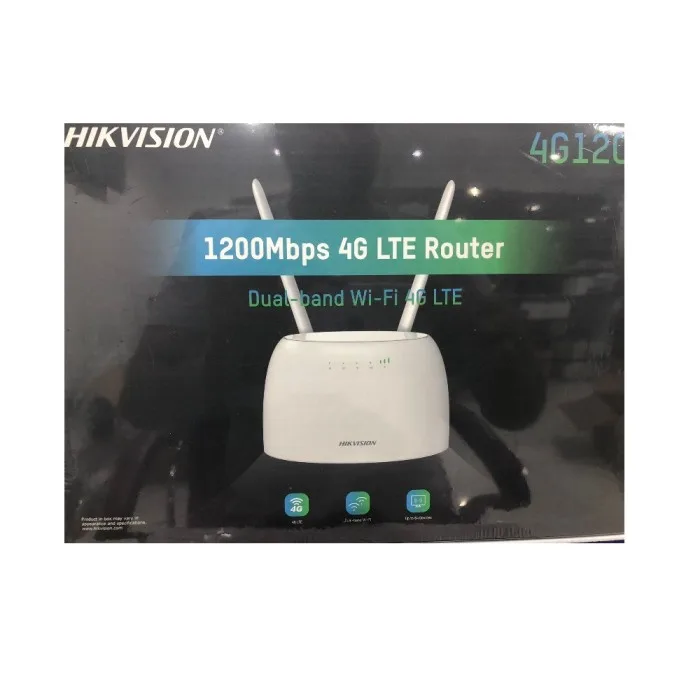

Hikvision Hikvision DS 3WR4G12C
Specification
Product Dimensions 233.9mm×151.4mm×40.3mm
Package Dimensions (W × H × D) 405mm×307mm×80mm
Net Weight 0.560kg
Packing List 4G LTE Router x 1
Power Adapter x 1
Detachable Antenna x 2
Ethernet Cable x 1
SIM Card Adapter x 1
Quick Start Guide x 1
Regulatory Compliance and Safety Information x 1
Packing Method Single pack
Working Temperature 0 to 40 (32 to 104)
Working Humidity 10% to 90% RH non-condensing
Storage Temperature -40 to 70 (-40 to 158 )
Storage Humidity 5% to 90% RH non-condensing
Installation Mode Desktop installation
Max. Power Consumption < 9 W
Gross Weight 0.620 kg
Wireless Parameter
Max. Transmission Rate Of Air Interface <1167 Mbps
2.4 GHz: 300 Mbps
5 GHz: 867 Mbps
Wireless Standard IEEE 802.11/a/n/ac wave 2 @5GHz, IEEE 802.11b/g/n @2.4GHz
Working Frequency Band 2.4 GHz，5 GHz
Transmitting Power 16dBm @ 2.4G-mcs7、17dBm @ 5G-mcs9
Wireless Performance 2*2 MIMO supported
Receiving Sensitivity -58 + 2 dB@AC80 -MCS9
-84 + 2 dB@AC80 -MCS0
Antenna 2 high gain antennas
Network Type LTE CAT.4
Mobile Standards FDD LTE, TDD-LTE,WCDMA
Mobile Bands 4G FDD LTE: B1/B3/B7/B8/B20/B28AB,4G TDD-LTE: B38/B40/B41,3G WCDMA: B1/B8
4G Speed DL: 150 Mbps, Upload: 50 Mbps
Hardware Parameter
Network Interface 2 × RJ45, 10/100 Mbps auto-negotiation
LED Indicator power LED*1、internet LED*1、WiFi LED*1、RJ45 LED*1、LTE LED*3
Reset Reset button*1
Power Supply Method 9 VDC, 1 A power adapter power supply
Power Specifications 9 VDC, 1 A
Software Function
Application Function 3G/4G Route Mode, Wireless Router Mode, and AP Mode supported
DHCP Server supported
Guest Network Configuration supported
Signal Adjustment supported
WiFi Schedule supported
ecurity Mode WPA-PSK, WPA2-PSK, WPA and WPA2 supported
Security Mechanism Hide SSID
Management Method Web
Upgrade Web
