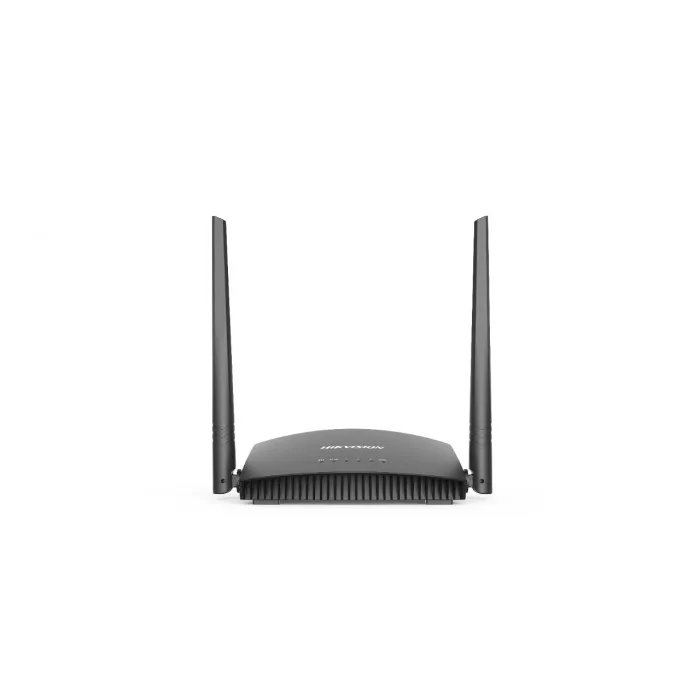

Hikvision HIKVISION DS-3WR3N
Description
Wireless Parameter
Data Rate
2.4 GHz: 300 Mbps
Wireless Standard
IEEE 802.11b/g/n @2.4 GHz
Transmitting Power
18 dBm
Wireless Performance
Beamforming supported
Receiving Sensitivity
58 ± 2 dB@AC80 -MCS9
84 ± 2 dB@AC80 -MCS0
Antenna
2 high gain antennas
Hardware Parameter
Network Interface
4 × RJ45, 10/100 Mbps auto-negotiation
LED Indicator
LED indicator
Reset
Reset button
Power Supply Method
9 VDC, 1 A power adapter power supply
Power Specifications
9 VDC, 1 A
Software Function
Application Function
Wireless Router Mode, Wireless Repeater Mode, Client + AP, WISP, and AP Mode supported
DHCP Server supported
Guest Network Configuration supported
Signal Adjustment supported
WiFi Schedule supported
Security Mode
WPA-PSK/WPA2-PSK, WPA/WPA2
Security Mechanism
Hide SSID
Management Method
Web, APP
Upgrade
Web, App Update and Upgrade
System Log
System log
General
Product Dimension (W × H × D)
174.82 mm × 96.45 mm × 181.06 mm (6.88″× 3.80″× 7.13″)
Package Dimension (W × H × D)
231 mm × 203 mm × 51 mm (9.09″× 7.99″× 2.01″)
Net Weight
0.134 kg (0.295 lb)
Packing List
Wireless Router x 1, Ethernet cable × 1, Quick installation guide × 1
Packing Method
Single pack
Working Temperature
0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
Working Humidity
10% to 90% RH non-condensing
Storage Temperature
-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
Storage Humidity
5% to 90% RH non-condensing
Installation Mode
Desktop installation
Max. Power Consumption
≤ 5.4 W
Gross Weight
0.634 kg (1.398 lb)
