DS-2CD2H43G0-IZS Overview

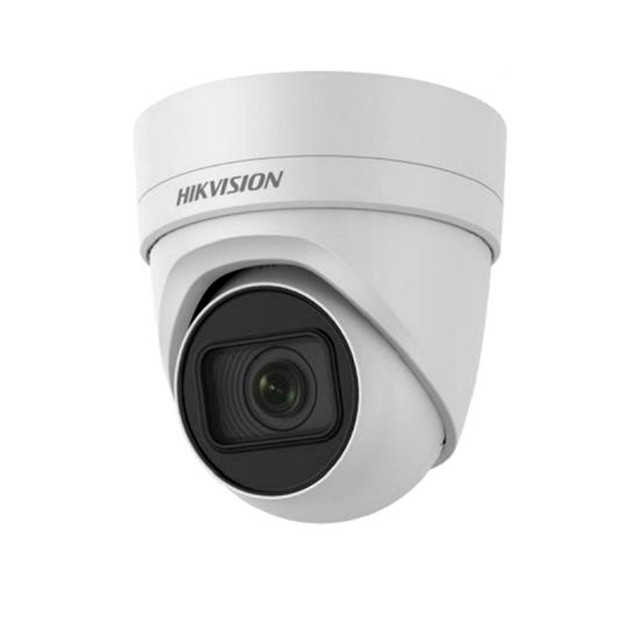

Hikvision DS-2CD2H43G0-IZS is the 4 MP IR Vari-focal Turret Network Camera.
Quick Spec
Table 1 shows the quick spec.
|
Model |
DS-2CD2H43G0-IZS |
|
Image Sensor |
1/3″ Progressive Scan CMOS |
|
Signal System |
PAL/NTSC |
|
Min. Illumination |
Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR |
|
Shutter time |
1/3 s to 1/100,000 s |
|
Slow shutter |
Support |
|
Lens |
horizontal FOV: 104° to 29° vertical FOV: 55° to 17° diagonal FOV: 125° to 34° |
|
Lens Mount |
φ14 |
|
Adjustment Range |
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 360° |
|
Day& Night |
IR cut filter with auto switch |
|
Wide Dynamic Range |
120 dB |
|
Digital noise reduction |
3D DNR |
|
Focus |
Auto |
Product Details
Hikvision DS-2CD2H43G0-IZS provides these key features:
• 1/3″ Progressive Scan CMOS
• 2688 ×1520@30fps
• 2.8 to 12 mm varifocal lens
• Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
• H.265+, H.265, H.264+, H.264
• Three streams
• 120dB WDR
• 2 Behavior analyses, and face detection
• BLC/3D DNR/ROI/HLC
• IP66, IK10
• Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
• 3-Axis adjustment
Compare to Similar Item
Table 2 shows the comparison.
| Model | DS-2CD2563G0-IS |
DS-2CD2H43G0-IZS |
| Image Sensor | 1/2.9″ Progressive Scan CMOS |
1/3″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR |
Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter time | 1/3 s to 1/100,000 s |
1/3 s to 1/100,000 s |
| Slow shutter | Support | Support |
| Adjustment Range | Pan: -30° to +30°, tilt: 0° to 75°, rotate: 0° to 360° |
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 360° |
Get More Information
Do you have any question about the DS-2CD2H43G0-IZS?
Contact us now via Live Chat or sales@router-switch.com.
DS-2CD2H43G0-IZS Specification
DS-2CD2H43G0-IZS Specification |
|
|
Camera |
|
|
Image Sensor |
1/3″ Progressive Scan CMOS |
|
Signal System |
PAL/NTSC |
|
Min. Illumination |
Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR |
|
Shutter time |
1/3 s to 1/100,000 s |
|
Slow shutter |
Support |
|
Lens |
horizontal FOV: 104° to 29° vertical FOV: 55° to 17° diagonal FOV: 125° to 34° |
|
Lens Mount |
φ14 |
|
Adjustment Range |
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 360° |
|
Day& Night |
IR cut filter with auto switch |
|
Wide Dynamic Range |
120 dB |
|
Digital noise reduction |
3D DNR |
|
Focus |
Auto |
|
Compression Standard |
|
|
Video Compression |
H.265+/H.265/H.264+/H.264/MJPEG |
|
Video bit rate |
256Kbps~16Mbps |
|
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM |
|
Audio bit rate |
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
|
Triple Streams |
Yes |
|
Image |
|
|
Max. Image Resolution |
2688 × 1520 |
|
Frame Rate |
50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080) 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080) |
|
Sub Stream |
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
|
Third Stream |
50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) |
|
Image Enhancement |
BLC/3D DNR/ROI/HLC |
|
Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
|
Target Cropping |
No |
|
ROI |
1 fixed region for main stream and sub-stream |
|
Day/Night Switch |
Day/Night/Auto/Schedule/Triggered by alarm in |
|
Network |
|
|
Network Storage |
microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
|
Alarm Trigger |
Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
|
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP?, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
|
General Function |
One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
|
System Compatibility |
ONVIF (Profile S, Profile G),ISAPI |
|
Interface |
|
|
Audio |
1 input (line in/mic.in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound |
|
Communication Interface |
1 RJ45 10M / 100M Ethernet interface |
|
Alarm |
1 input, 1 output (up to 12 VDC, 30 mA), terminal block |
|
On-board storage |
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
|
Reset Button |
Yes |
|
Audio |
|
|
Environment Noise Filtering |
Support |
|
Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz |
|
Smart Feature-set |
|
|
Behavior Analysis |
Line crossing detection, intrusion detection |
|
Line Crossing Detection |
Cross a pre-defined virtual line |
|
Intrusion Detection |
Enter and loiter in a pre-defined virtual region |
|
Recognition |
Face Detection |
|
General |
|
|
Operating Conditions |
-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
|
Power Supply |
12 VDC ± 25%, PoE (802.3af Class3) |
|
Power Consumption |
12 VDC, 0.85A, max. 10W PoE (802.3af, 37V to 57V), 0.35A to 0.2A, max. 12.5W |
|
Impact Protection |
IK10 |
|
Weather Proof |
IP66 |
|
IR Range |
Up to 30m |
|
Dimensions |
Φ 135.8 × 145.5 mm (Φ 5.4″ × 5.7″) |
