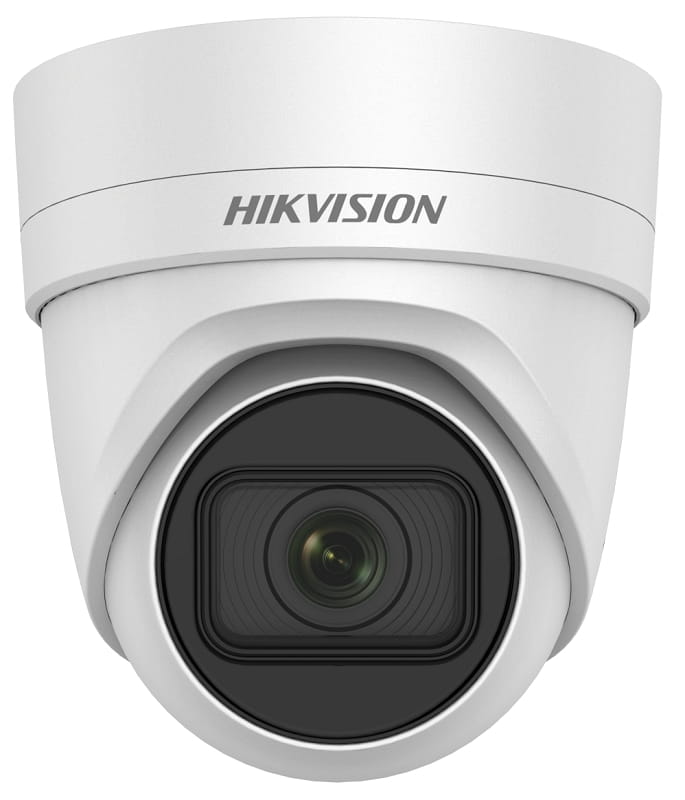

Hikvision DS-2CD2H23G0-IZS is the 2 MP IR Vari-focal Turret Network Camera.

DS-2CD2H23G0-IZS Specification

Camera

Image Sensor

1/2.8″ Progressive Scan CMOS

Signal System

PAL/NTSC

Min. Illumination

Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR

Shutter time

1/3 s to 1/100,000 s

Slow shutter

Support

Lens

horizontal FOV: 110? to 31?

vertical FOV: 58? to 18?

diagonal FOV: 136? to 36?

Lens Mount

?14

Adjustment Range

Pan: 0? to 355?, tilt: 0? to 75?, rotate: 0? to 360?

Day& Night

IR cut filter with auto switch

Wide Dynamic Range

120 dB

Digital noise reduction

3D DNR

Focus

Auto

Compression Standard

Video Compression

H.265+/H.265/H.264+/H.264/MJPEG

Video bit rate

256Kbps~16Mbps

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM

Audio bit rate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Triple Streams

Yes


Max. Image Resolution

1920 x 1080

Frame Rate

50Hz: 25fps (1920 ? 1080, 1280 ? 960, 1280?720)

60Hz: 30fps (1920 ? 1080, 1280 ? 960, 1280?720)

Sub Stream

50Hz: 25fps (640 ? 480, 640 ? 360, 320 ? 240)

60Hz: 30fps (640 ? 480, 640 ? 360, 320 ? 240)

Third Stream

50Hz: 25fps (1920 ? 1080, 1280 ? 720, 640 ? 360, 352 ? 288)

60Hz: 30fps (1920 ? 1080, 1280 ? 720, 640 ? 360, 352 ? 240)

Image Enhancement

BLC/3D DNR/ROI/HLC

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

Target Cropping

No

ROI

1 fixed region for main stream and sub-stream

Day/Night Switch

Day/Night/Auto/Schedule/Triggered by alarm in

Network

Network Storage

microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

Alarm Trigger

Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

General Function

One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy?mask, Watermark, IP address filtering

System Compatibility

ONVIF (Profile S, Profile G),ISAPI

Interface

Audio

1 input (line in/mic.in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound

Communication Interface

1 RJ45 10M / 100M Ethernet interface

Alarm

1 input, 1 output (up to 12 VDC, 30 mA), terminal block

On-board storage

Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Reset Button

Yes

Audio

Environment Noise Filtering

Support

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz

Smart Feature-set

Behavior Analysis

Line crossing detection, intrusion detection

Line Crossing Detection

Cross a pre-defined virtual line

Intrusion Detection

Enter and loiter in a pre-defined virtual region

Recognition

Face Detection

General

Operating Conditions

-30 ?C ~ 60 ?C (-22 ?F ~ 140 ?F)

Humidity 95% or less (non-condensing)

Power Supply

12 VDC ? 25%, PoE (802.3af Class3)

Power Consumption

12 VDC, 0.85A, max. 10W

PoE (802.3af, 37V to 57V), 0.35A to 0.2A, max. 12.5W

Impact Protection

IK10

Weather Proof

IP66

IR Range

Up to 30m

Dimensions

? 135.8 ? 145.5 mm (? 5.4″ ? 5.7″)
