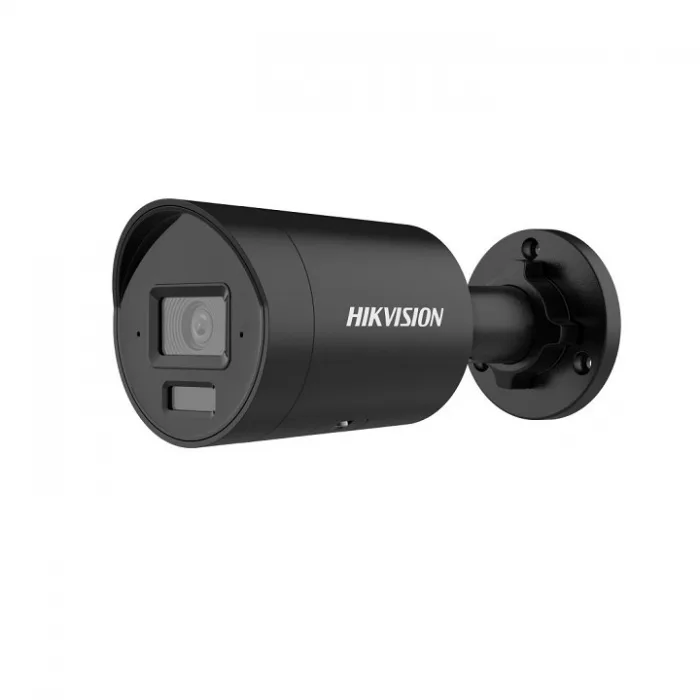

Hikvision Hikvision DS-2CD2043G2-LI2U(2.8mm)
Camera
Image Sensor 1/2.9″ Progressive Scan CMOS
Max. Resolution 2688 x 1520
Min. Illumination Color: 0.005 Lux (F1.6, AGC ON),0 Lux with light
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0 to 360,tilt: 0 to 90,rotate: 0 to 360
Lens
Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 104, vertical FOV 57, diagonal FOV 122
4 mm, horizontal FOV 84, vertical FOV 45, diagonal FOV 100
6 mm, horizontal FOV 52, vertical FOV 28, diagonal FOV 61
Lens Mount M12
Iris Type Fixed
Aperture F1.6
Depth of Field 2.8 mm: 1.4 m to
4 mm: 1.5 m to
6 mm: 3.5 m to
General
Power 12 VDC + 25%, 0.5 A, max. 6 W,reverse polarity protection,Ø5.5 mm coaxial power plug,
PoE: IEEE 802.3af, Class 3, max. 7.5 W
Material Metal
Dimension 74.4 mm x 176.3 mm (2.93″ x 6.94″)
Package Dimension 234 mm x 120 mm x 117 mm (9.21″ x 4.72″ x 4.61″)
Weight Approx. 515 g (1.1 lb.)
With Package Weight Approx. 760 g (1.7 lb.)
Storage Conditions -30 C to 60 C (-22 F to 140 F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 C to 60 C (-22 F to 140 F). Humidity 95% or less (non-condensing)
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
Download Hikvision DS-2CD2043G2-LI2U(2.8mm) Datasheet
