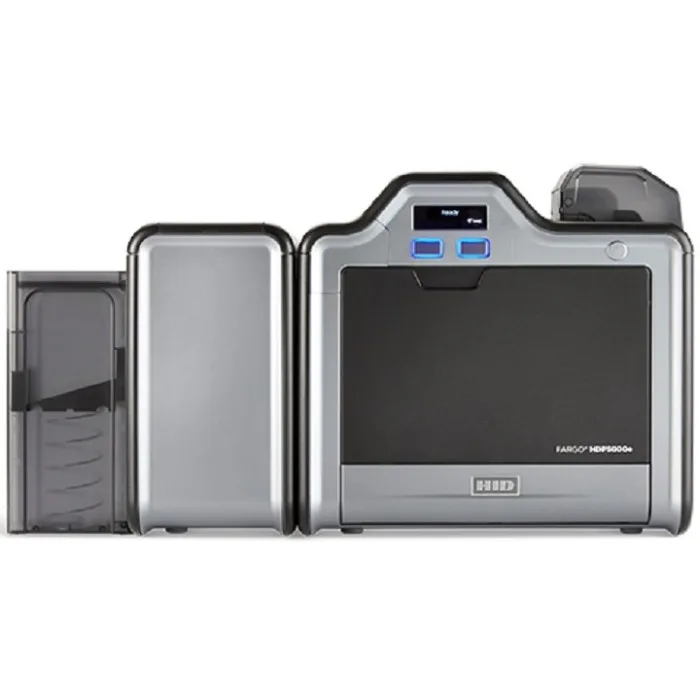

HID Fargo HID Fargo HDP5000e
| HID Fargo HDP5000e Printer Specifications | |
|---|---|
| Print Method | HDP Dye-Sublimation / Resin Thermal Transfer |
| Resolution | 300 dpi (11.8 dots/mm) |
| Colors | Up to 16.7 million / 256 shades per pixel |
| Print Ribbon Options |
|
| HDP Film Options | Clear (1,500 prints), Standard Holographic (500 prints), Custom Holographic (contact HID) |
| Overlaminate Options |
|
| Print Speed (Batch Mode) |
|
| Accepted Card Sizes | CR-80 (3.375” x 2.125” / 85.6 mm x 54 mm) |
| Accepted Card Thickness | 0.030″ (30 mil) to 0.050″ (50 mil) / 0.762 mm to 1.27 mm |
| Accepted Card Types | ABS, Laminated PVC, PET, PETG, Proximity, Smart, Mag Stripe (Note: ABS & PVC not recommended for lamination) |
| Input Hopper Capacity | 100 cards (Optional: 200 with dual input hopper) |
| Output Hopper Capacity | 200 cards |
| Card Cleaning | Replaceable cleaning roller (included with each ribbon) |
| Display | Graphical OLED |
| Software Drivers | Windows 10 / 11 / Server 2016 / 2019 / 2022 |
| Interface | USB 2.0 (high speed), Ethernet with internal print server |
| Encoding Options |
|
| Supported Access Control Technologies | iCLASS® Standard / SE / SR / Seos, MIFARE Classic, DESFire® EV1 / EV2, HID Prox |
| Operating Temperature | 65F to 90F / 18C to 32C |
| Humidity | 20 – 80% non-condensing |
| Dimensions |
|
| Certifications | UL, CE, FCC, IC, IFTEL, KC, VCCI, MIC, NCC, WPC, BIS, ENACOM |
| Power Supply | 100-240 VAC, 1.6A | 50/60 Hz |
| FARGO Secure Materials | Requires HID Secure Materials for warranty and optimal performance |
| Options |
|
| Software | FARGO Workbench diagnostic utility with Color Assist spot-color matching |
Download HID Fargo HDP5000e Datasheet
