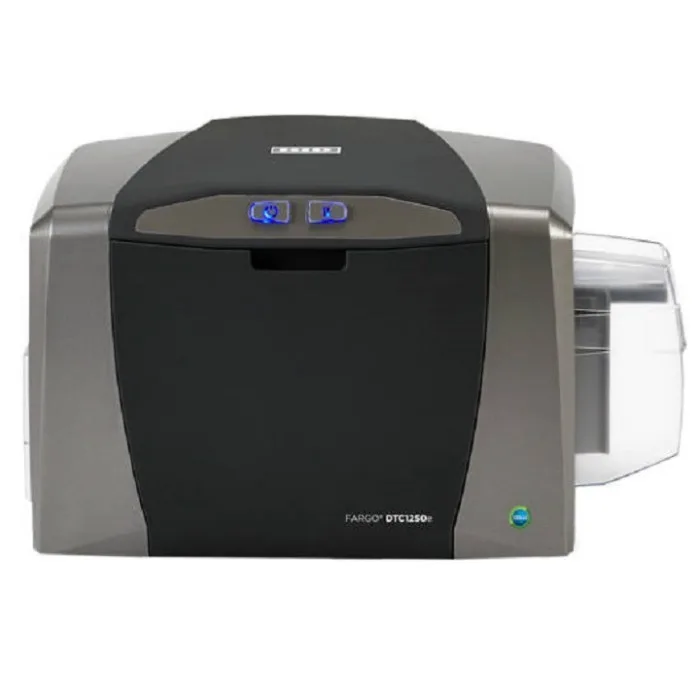

HID Fargo HID Fargo DTC1250e
| Category | Details |
|---|---|
| Print Method | Dye sublimation / resin thermal transfer |
| Resolution | 300 dpi (11.8 dots/mm) continuous tone |
| Colors | Up to 16.7 million / 256 shades per pixel |
| Ribbon Options | EZ and ECO:
EZ only:
|
| Print Speed | K – 6s, KO – 8s, YMCKO – 16s, YMCKOK – 24s |
| Security Features | Resin scramble, AES 256-bit encryption |
| Card Sizes | CR-80, CR-79 adhesive back |
| Print Area | CR-80 edge-to-edge, CR-79 standard |
| Card Thickness | 0.009″ – 0.040″ / 9 – 40 mil |
| Card Types | PVC / Polyester (polished), 100% polyester (resin only), rewriteable cards |
| Input Hopper Capacity | 100 cards (0.030″) |
| Output Hopper Capacity | Single-sided: 30 cards, Dual-sided: 100 cards |
| Card Cleaning | Roller integrated into ribbon cartridge; auto-replaced |
| Memory | 32 MB RAM |
| Drivers | Windows 7/10/11, Server 2012/2016/2019/2022 |
| Interface | USB 2.0; optional Ethernet (with internal print server) |
| Operating Temperature | 65F – 80F / 18C – 27C |
| Humidity | 20–80% non-condensing |
| Dimensions | Single-sided: 8.8″ x 13.7″ x 7.9″ (224 x 348 x 201 mm) Dual-sided: 9.8″ x 18.7″ x 9.2″ (249 x 475 x 234 mm) |
| Weight | Single-sided: 7.5 lbs / 3.4 kg Dual-sided: 10 lbs / 4.54 kg |
| Agency Listings | UL, CSA, CE, FCC Class A, CCC, BSMI, KC |
| Environmental Features | Energy efficient, ECO cartridges, card rewrite support |
| Power Supply | 100–240 VAC, 50/60Hz, 1.6 A max |
| Encoding Options |
|
| Supported Access Credential Programming | HID Prox, MIFARE Classic, MIFARE DESFire EV1, iCLASS SE/SR/Seos |
| Options | Dual-sided printing, smart card & magnetic stripe encoding, Ethernet, cleaning kit, secure consumables system |
| Software | FARGO Workbench with Color Assist |
| Display | Color-changing status buttons |
Download HID Fargo DTC1250e Datasheet
