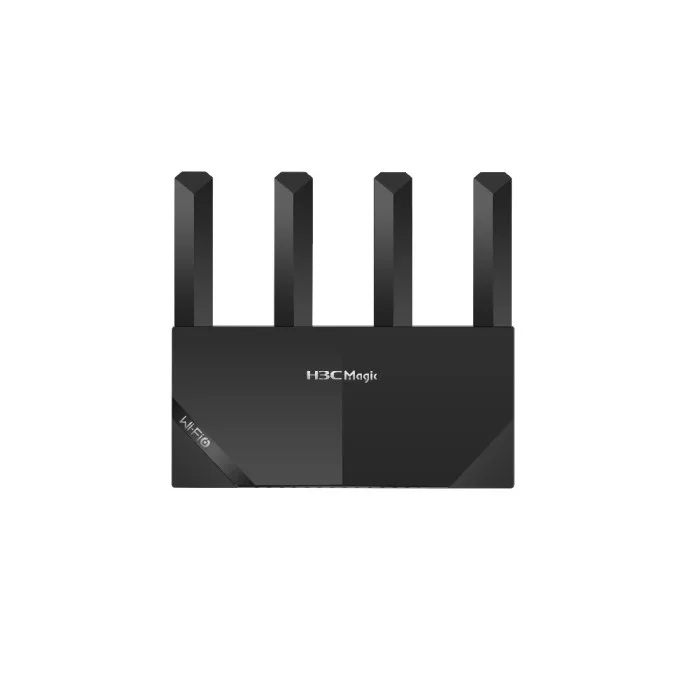

H3C Magic NX15 Gigabit Wi-Fi 6 Router
D 126.00
Key features
Gigabit Wi-Fi 6 Router
#1: 5GHz Wi-Fi 6
#2: New Vertical Design
#3: Stereoscopic Heat Dissipation
#4: Full Gigabit Network Port
Category: Routers
Description
Specifications
Port 4 x 10/100/1000BASE-T Ethernet ports
Antenna 4 x external 5 dBi omnidirectional antennas
LED System status LED on the rear
Dimensions(H × W × D) 180 x 195 x 57.3 mm(7.09 x 7.68 x 2.26 in)
Power consumption < 12 W
Cooling Passive cooling
Certification CE WEEE RoHS
Wireless
Wireless protocol 2.4GHz: 802.11n/g/b
5GHz: 802.11ax/ac/n/a
Spatial streams 2.4GHz 2×2 MIMO
5GHz 2×2 MIMO
Wireless bandwidth 2.4G HT20/HT40
5G HT20/HT40/HT80
Wireless rate Simultaneous dual-band: 1501 Mbps, including 300Mbps on the 2.4GHz band and 1201 Mbps on the5GHz band.
Wireless roaming IEEE 802.11k/v
MU-MIMO Upstream and downstream MU-MIMO
Software
Internet connection Routing mode: DHCP/PPPoE/static IP
Bridge mode: Wired repeating/wireless repeating
Mesh Support
IPv6 Support
Security WPA3, anti-piggybacking, firewall, DMZ
Network management Guest Wi-Fi, access allowlist and denylist, parental control at multiple time ranges, IP-based traffic control, scheduled Wi-Fi on/off
Special features QoS traffic shaping, broadband password retrieval, packet fast-forwarding engine, virtual server, DDNS(NoIP,DynDNS), VPN(PPTP Client,L2TP Client)
Management method H3C Magic APP management (iOS, Android), Web management
Fault diagnosis Link detection
Internet access diagnosis
Operating environment
Operating temperature 0C to 40C (32F to 104F)
Storage humidity 10% to 90% RH, noncondensing
Package
Packing list Integrated machine
Power adapter
Networking cable
Installation quick start
