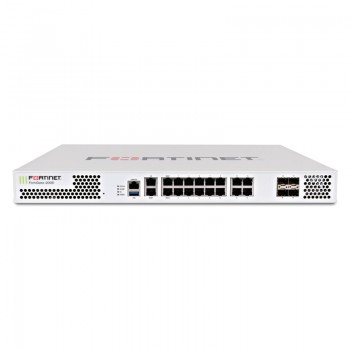

18 x GE RJ45 (including 2 x WAN ports, 1 x MGMT port, 1 X HA port, 14 x switch ports), 4 x GE SFP slots. SPU NP6Lite and CP9 hardware accelerated.
FG-200E Specification |
|
| Type | FORTIGATE 200E |
|
Interfaces and Modules |
|
| GE SFP Slots | 4 |
| GE RJ45 Interfaces | 14 |
| GE RJ45 WAN Interfaces | 2 |
| GE RJ45 Management/HA Ports | 2 |
| USB Ports | 2 |
| RJ45 Console Port | 1 |
| Local Storage | – |
| Included Transceivers | 0 |
|
System Performance and Capacity |
|
| Firewall Throughput (1518 / 512 / 64 byte, UDP) | 20 / 20 / 9 Gbps |
| Firewall Latency (64 byte, UDP) | 3 ?s |
| Firewall Throughput (Packet per Second) | 13.5 Mpps |
| Concurrent Sessions (TCP) | 2 Million |
| New Sessions/Second (TCP) | 135,000 |
| Firewall Policies | 10,000 |
| IPsec VPN Throughput (512 byte) | 7.2 Gbps |
| Client-to-Gateway IPsec VPN Tunnels | 10,000 |
| SSL-VPN Throughput | 900 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 5,00 |
| SSL Inspection Throughput (IPS, avg. HTTPS)? | 820 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 1000 |
| Application Control Throughput (HTTP 64K) | 3.5 Gbps |
| CAPWAP Throughput (1444 byte, UDP) | 1.5 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 24 |
| Maximum Number of FortiAPs (Total / Tunnel) | 128 / 64 |
| Maximum Number of FortiTokens | 5,000 |
| Maximum Number of Registered FortiClients | 600 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
|
System Performance ? Enterprise Traffic Mix |
|
| IPS Throughput | 2.2 Gbps |
| NGFW Throughput | 1.8 Gbps |
| Threat Protection Throughput | 1.2 Gbps |
|
Dimensions and Power |
|
| Height x Width x Length | 1.75 x 17.0 x 11.9 inches
44.45 x 432 x 301 mm |
| Form Factor | 1 RU |
| AC Power Supply | 100?240V AC, 60?50 Hz |
| Power Consumption (Average / Maximum) | 70.98 / 109.9 W |
| Heat Dissipation | 374.9 BTU/h |
|
Operating Environment and Certifications |
|
| Operating Temperature | 32?104?F (0?40?C) |
| Storage Temperature | -31?158?F (-35?70?C) |
| Humidity | 10?90% non-condensing |
| Noise Level | 31.1 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
