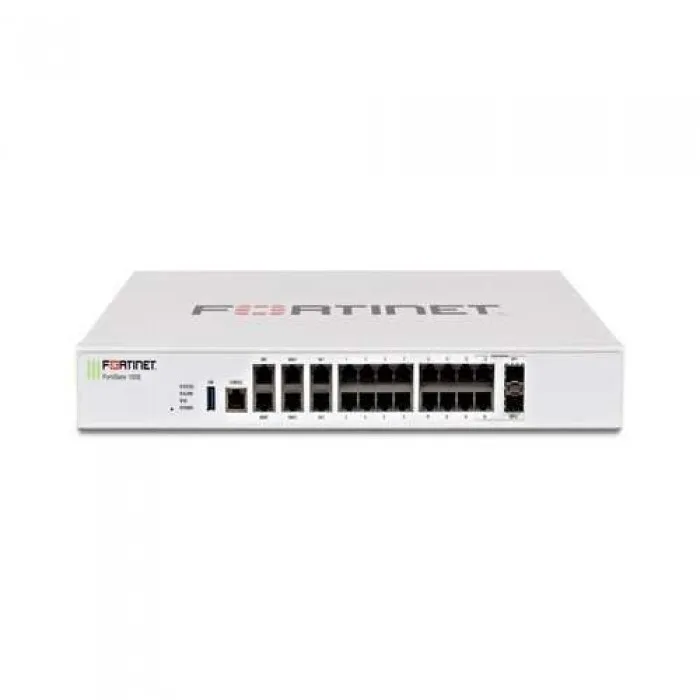

Fortinet FortiGate FG-100E-BDL
- Firewall Throughput (1518 / 512 / 64 byte UDP packets): 7.4 / 7.4 / 4.4 Gbps
- Firewall Latency (64 byte UDP packets): 3 µs
- Firewall Throughput (Packets Per Second): 6.6 Mpps
- Concurrent Sessions (TCP): 2 Million
- New Sessions/Second (TCP): 30,000/li>
- Firewall Policies: 10,000
- IPsec VPN Throughput (512 byte packets): 4 Gbps
- Gateway-to-Gateway IPsec VPN Tunnels: 2,000
- Client-to-Gateway IPsec VPN Tunnels: 10,000
- SSL-VPN Throughput: 250 Mbps
- Concurrent SSL-VPN Users (Recommended Maximum): 500
- SSL Inspection Throughput (IPS, avg. HTTPS): 130 Mbps
- SSL Inspection CPS (IPS, avg. HTTPS): 130
- SSL Inspection Concurrent Session (IPS, avg. HTTPS): 125,000
- Application Control Throughput (HTTP 64K): 1 Gbps
- High Availability Configurations: Active / Active, Active / Passive, Clustering<
- Ports/Connectors:
- (14) GE RJ45, (1) GE RJ45 Management, (2) GE RJ45 HA, (1) GE RJ45 DMZ, (2) GbE RJ45 WAN, (2) GbE RJ45 or SFP Shared, (1) USB, (1) Console
- Power Required: 100–240V AC, 60–50 Hz
- Maximum Current: 100V / 1A, 240V / 0.5A
- Power Consumption (Average / Maximum): 23.0 W / 25.5 W
- Networking Protocol : Gigabit Ethernet
