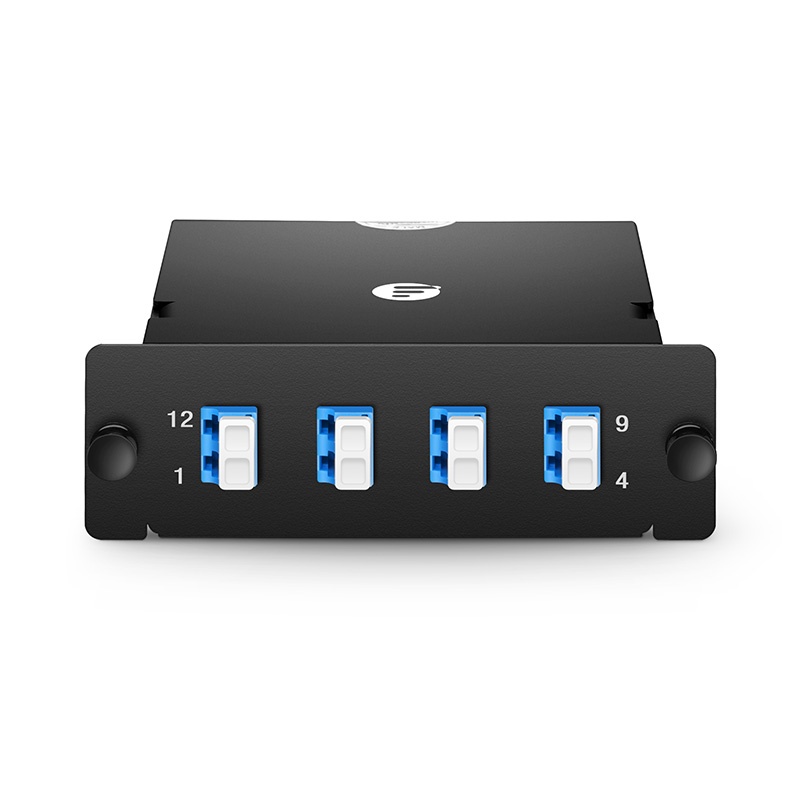

FHD 8 Fibers MTP-8 to LC Duplex OS2 Single Mode MTP Cassette
FHD series MTP fiber cassettes feature one rear 8-fiber MTP port connection and 4 duplex LC ports in front. This Base-8 MTP fiber cassette is designed to upgrade existing LC links to LR4 parallel optics without wasting any of the fibers inside the cable.
The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
FHD High Density Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers and enterprise applications.
Description
Fiber Count
8 Fibers
Fiber Mode
OS2 9/125?m
Front Connector Type
LC UPC Duplex (Blue)
Number of LC Port
4 Ports
Rear Connector Type
US Conec MTP? APC (Pinned)
Number of MTP? Port
1 Port
MTP Adapter
Key Up to Key Down
Housing Type
Cassette
Material of Sleeve
Zirconia Ceramic
Material of Cassette Body
Aluminium (AL5052)
Polarity
Universal
Dimensions (HxWxD)
1.38”x4.29”x4.64” (35x109x118mm)
Insertion Loss
MTP?0.35dB, LC?0.2dB
Return Loss
MTP?60dB, LC?50dB
Standard
RoHS Compliant
Application
Matching for FHD Series Enclosures
