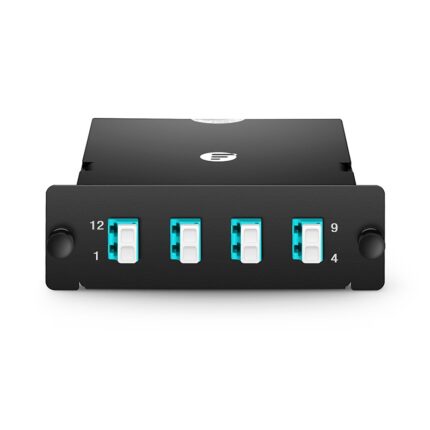

FHD 12 Fibers Elite MTP-12 to LC Fiber Optic Plug-N-Play Cassette, 12 Strands OM4 50/125?m MMF
FHD series MTP fiber cassette modules offer 12-fiber MTP adapter on the rear of the units routed to duplex LC adapters on the front patch field, which interconnect with high density fiber cable assemblies for multiple applications.
The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
FHD High Density Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers and enterprise applications.
Description
Fiber Count
12 Fibers
Fiber Mode
OM4 50/125?m
Front Connector Type
LC UPC Duplex (Aqua)
Number of LC Port
6 Ports
Rear Connector Type
US Conec MTP? UPC (Pinned)
Number of MTP? Port
1 Port
MTP Adapter
Key Up to Key Down
Housing Type
Cassette
Material of Sleeve
Zirconia Ceramic
Material of Cassette Body
Aluminium (AL5052)
Polarity
Type A
Dimensions (HxWxD)
1.38”x4.29”x4.64” (35x109x118mm)
Insertion Loss
MTP?0.35dB, LC?0.2dB
Return Loss
MTP?20dB, LC?30dB
Standard
RoHS Compliant
Application
Matching for FHD Series Enclosures
