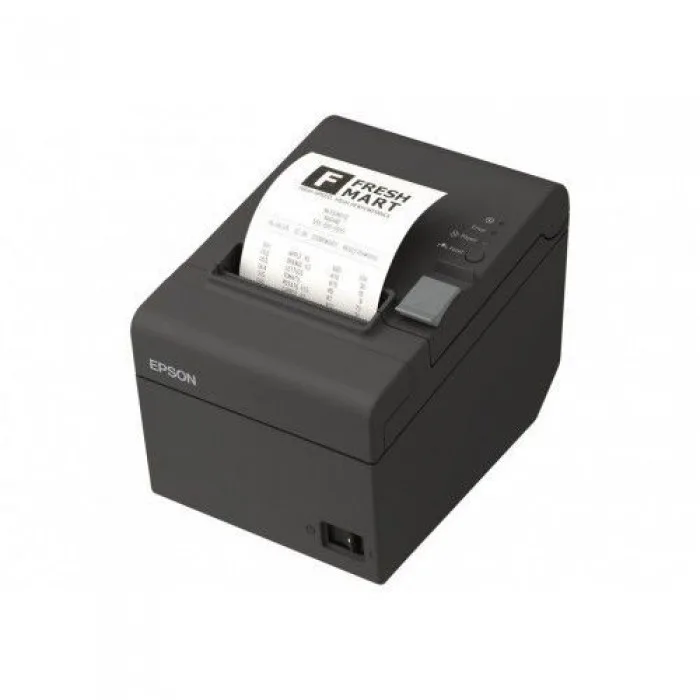

Epson EPSON TMT20 iii
| Specification | Details |
|---|---|
| Model Name | TM-T20 |
| Print Method | Thermal line printing |
| Print Font | Font: 9×17 / 12×24 Character Size: 0.88 (W) x 2.13 (H) mm / 1.25 (W) x 3 (H) mm Character Set: 95 Alphanumeric, 18 Set International, 128×43 Graphic Barcodes Supported: UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN), CODE39, ITF, CODABAR(NW-7), CODE93, CODE128, GS1-128, GS1 DataBar 2D Codes Supported: PDF417, QR Code, MaxiCode, 2D GS1 DataBar, Composite Symbology |
| Characters Per Inch | 22.6 CPI / 16.9 CPI |
| Column Capacity (Columns) | Paper Width 80 mm: 48 / 64 Paper Width 58 mm: 35 / 46 Standard 42 Column Mode: 42 / 60 (80 mm), 42 / 31 (58 mm) |
| Interfaces | USB, Serial, Ethernet |
| Receive Data Buffer | 4 KB or 45 bytes |
| Print Speed | Max. 150 mm/sec |
| PAPER Dimensions (mm) | Roll paper: 79.5 + 0.5 (W) x dia. 83.0 mm Roll paper: 57.5 + 0.5 (W) x dia. 83.0 mm |
| Power | 100 – 240V AC, 50 / 60 Hz |
| Power Consumption | 1.0 A |
| Power Supply | Internal (AC cable included) |
| D.K.D. Function | 2 drives |
| Reliability | Printer Mechanism Life: 15 million lines Auto Cutter Life: 1.5 million cuts MTBF: 360,000 hours MCBF: 60,000,000 lines |
| EMC Standards | FCC, VCCI, CE marking, AS/NZS CISPR22 class A, GOST-R |
| Safety Standards | UL / CSA / EN / TÃœV / GOST-R |
| Option | Affixing tape, External buzzer unit |
| Standard Accessories | Roll paper x 1 (for checking initial movement), CD-ROM (Drivers, Tool software, User’s manual), Power switch cover, Waterproof cover, Wall hanging bracket & screws, Rubber feet (for vertical install), Switch panel (vertical install), 58-mm paper guide plate, Interface cable, AC cable |
| Installation | Horizontal / Vertical / Vertical with wall hanging bracket / Wall hanging |
| Overall Dimensions | 140 mm (W) x 199 mm (D) x 146 mm (H) |
