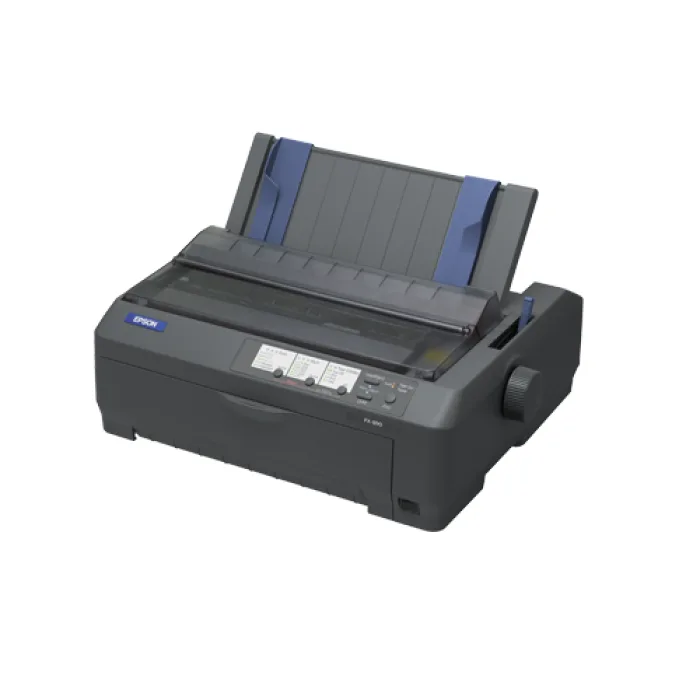

Epson Epson FX-890
#1: Speeds through multipart forms, reports, labels, and more at up to 680 cps
#2: Offers an MTBF rating of 20,000 POH and a 400 million character print head life
#3: Facilitates easy printer configuration using a newly designed control panel or Windows based Epson Remote Configuration Manager
#4: Provides resident Epson, IBM® and Microline printer languages for increased compatibility
#5: Includes standard Parallel and USB connections, plus an additional slot for optional interface cards
#6: Ensures a lower cost per page, and reduces the need for frequent user intervention
#7: Provides four convenient paper paths to accommodate cut sheet paper and continuous forms up to 7parts thick
#8: Includes access to Epson’s superior technical support
Print Other:
Printing Technology:
9-pin, serial impact dot matrix
Print Direction:
Bidirectional logic seeking for text and graphics printing. Unidirectional text or graphics printing can be selected using software commands.
ISO Print Speed:
Ultra Speed Draft: 680 cps (12 cpi); 566 cps (10 cpi)
High Speed Draft: 559 cps (10 cpi)
Draft: 419 cps (10 cpi)
Near Letter Quality: 104 cps (10 cpi)
Characters & Lines:
Character Sets:
13 character tables
13 international character sets
Resident Bitmapped Fonts:
Ultra Speed Draft: 10, 12 cpi
High Speed Draft: 10, 12, 15, 17, 20 cpi
Draft: 10, 12, 15, 17, 20 cpi
Near Letter Quality (Roman / Sans Serif): 10, 12, 15, 17, 20 cpi, proportional
Bar Code Fonts:
EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET, Codabar (NW-7), Industrial 2 of 5, Matrix 2 of 5
Characters per Line:
80 characters at 10 cpi
Line Spacing:
6 lines per inch default
Formatting:
1/6-inch or programmable in 1/432-inch increments
8 lpi option available on FX-890 Okidata Mode only
General:
Sound Level:
55 dB(A) (ISO 7779 pattern)
Dimensions:
16.3″ x 13.8″ x 6.6″ (W x D x H)
Weight:
16.8 lb
