| General | |
| Topology | On-line double conversion with PFC (Power Factor Correction) system |
| Configuration | Tower |

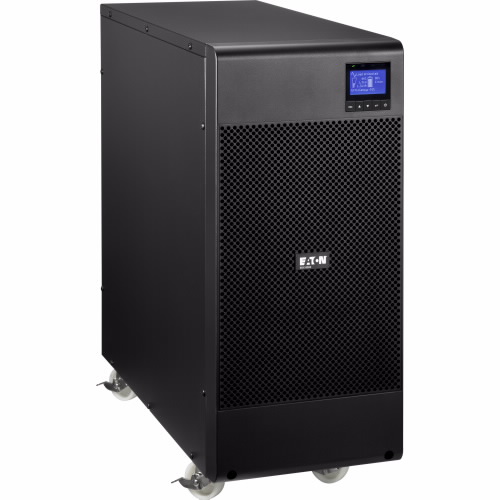

| Part Number | 9SX5KI |
| Rating (VA/Watts) | 5000/4500 |
| Dimensions (H x W x D, mm) | 575 x 244 x 542 |
| Weight (kg) | 65.5 |
| Warranty | 2 years warranty |
| Electrical Input | |
| Connection |
Hardwired – see manual for terminal block layout
|
| Input Voltage Range | 176-276V without derating (up to 120?276V with derating) |
| Nominal Voltage | 200/208/220/230/240V |
| Frequency | 50/60 Hz autoselection |
| Frequency Range | 40-70 Hz |
| Short Circuit Current | 90 A |
| Electrical Output | |
| Voltages | 200/208/220/230/240V +/? 2% |
| Voltage THD | < 3% |
| Outlets |
Hardwired – see manual for terminal block layout
|
| Overload Capacity | 102?110% : 120s, 110?125%: 60s, 125?150%: 10s, >150%: 500ms |
| Efficiency (Normal Mode) | Up to 94% in Online mode, 98% in Hi-Efficiency mode |
| Output Frequency | 50/60 Hz autoselect, frequency converter as standard |
| Load Crest Factor | 3:1 |
| Battery Management | ABM? and Temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units. |
| Extended Battery Capability | EBM |
| Communications | |
| User Interface | Multilingual graphical LCD display |
| Communication Ports | 1 USB port, 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously), 4 dry contacts (DB9), 1 mini terminal block for remote On/Off and 1 for remote power Off |
| Communication Slot | 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards |
| Environmental & Standards | |
| Audible Noise | <45dB |
| Operating Temperature | 0 to 40?C continuous |
| Safety markings | IEC/EN 62040-1 |
| EMC Markings | IEC/EN 62040 -2, IEC/EN 62040-3 (Performance) |
| Approvals | CE /CB report (TUV) / EAC / RCM / BIS / KCC |
