| General | |
| Topology | Line Interactive with Automatic Voltage Regulation |
| Configuration | Tower |

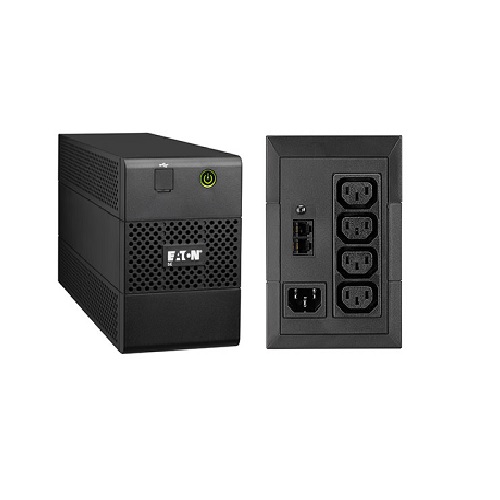

| Style Number | 5E650iUSB |
| Part Number | 5E650iUSB |
| Rating (VA/Watts) | 650VA/360W |
| Dimensions (H x W x D, mm) | 288 x 148 x 100 |
| Weight (kg) | 4.64 |
| Warranty | 2 years |
| Electrical Input | |
| Connection |
(1) IEC-320-C14
|
| Input Voltage Range | 170-280V |
| Nominal Voltage | 230 V |
| Operating Frequency | 50/60Hz |
| Electrical Output | |
| Nominal Voltage | 230V |
| Outlets |
(4) IEC-320-C13
|
| Battery | |
| Battery Management | Permanent battery recharge, cold start |
| Communications | |
| Communication Ports | 1 USB port |
| Power Management Software | Eaton UPS Companion software |
| Environmental & Standards | |
| Audible Noise | <40dB |
| Operating Temperature | 0 to 40? |
| Performance – Safety – EMC | IEC/EN 62040-2 |
| Safety markings | IEC/EN 62040-1 |
| Approvals | CE, CB report (TUV) |
| Data Line Protection | Internet/Tel/Fax |
Due to continuing product improvement programs, specifications are subject to change without notice.
