Characteristics
On Line Double Conversion
IEC outlet
9
3
Versatile rack/tower
LCD
Presentation
High-performance protection
Equipped with On Line Double Conversion technology controlled by microprocessor, the E3 Pro UPS range provides total protection and perfect sine wave current to your networks and devices in general. In the event of a power cut, up to 30 minutes of battery life ensures service continuity and enables the backup of sensitive data. An external battery connector allows the addition of dedicated battery cabinets to extend backup time according to needs and contexts (with battery status display on the UPS screen).
Backup time extension
Thanks to its powerful integrated battery charger (from 1A to 6A depending on the model), it is possible to add the number of battery cabinets necessary to ensure enough backup time.
Ideal format
The E3 Pro range is made up of 2 versions designed for easy installation:
– E3 Pro RM 1000 VA is a 1U rack format UPS that can be easily integrated into a 19” server bay
– E3 Pro RT from 1000 to 10k VA is a range of versatile UPSs designed for easy integration into a wide variety of environments: horizontal, in a patch bay thanks to fixing brackets (included), or vertically, in a “tower” position thanks to its base (included).
Economic and ecological features
– For maximum recharging between successive power cuts, an integrated charger reduces battery charging time (90% in just 4 hours). Thus, maximum recharging can be guaranteed between successive power cuts
– The cold start function allows emergency start-up of connected equipment
– On return of grid power supply, the E3 Pro performs an automatic restart

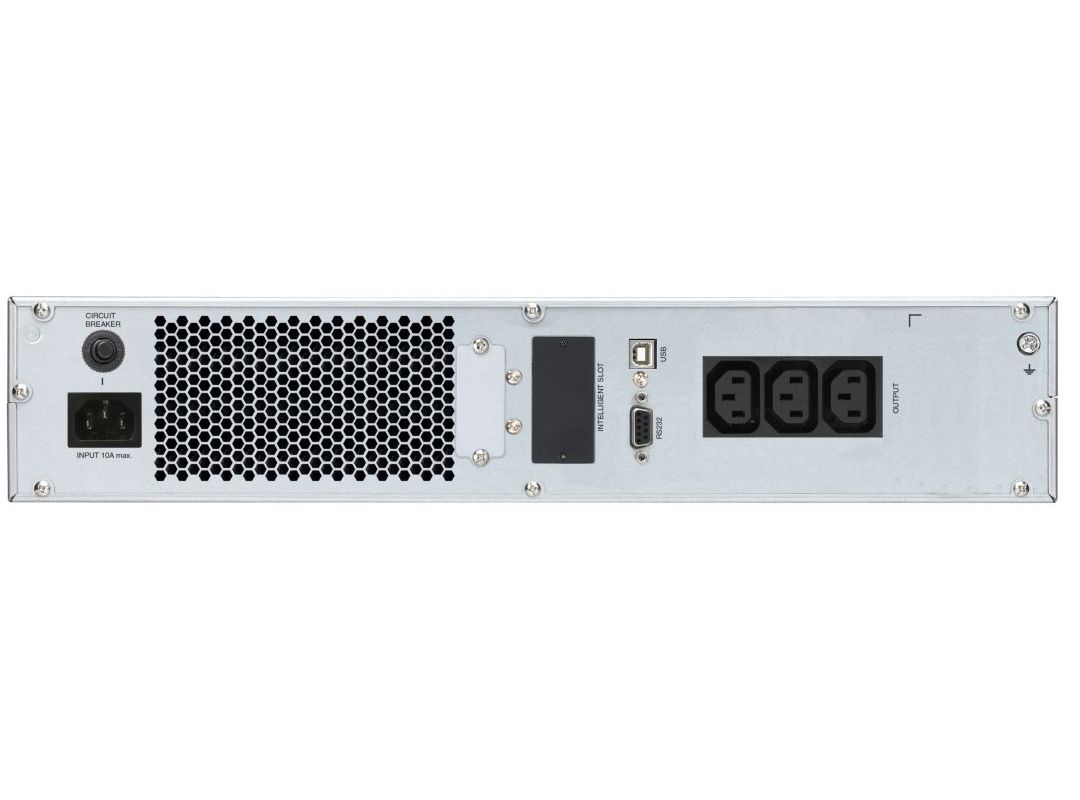

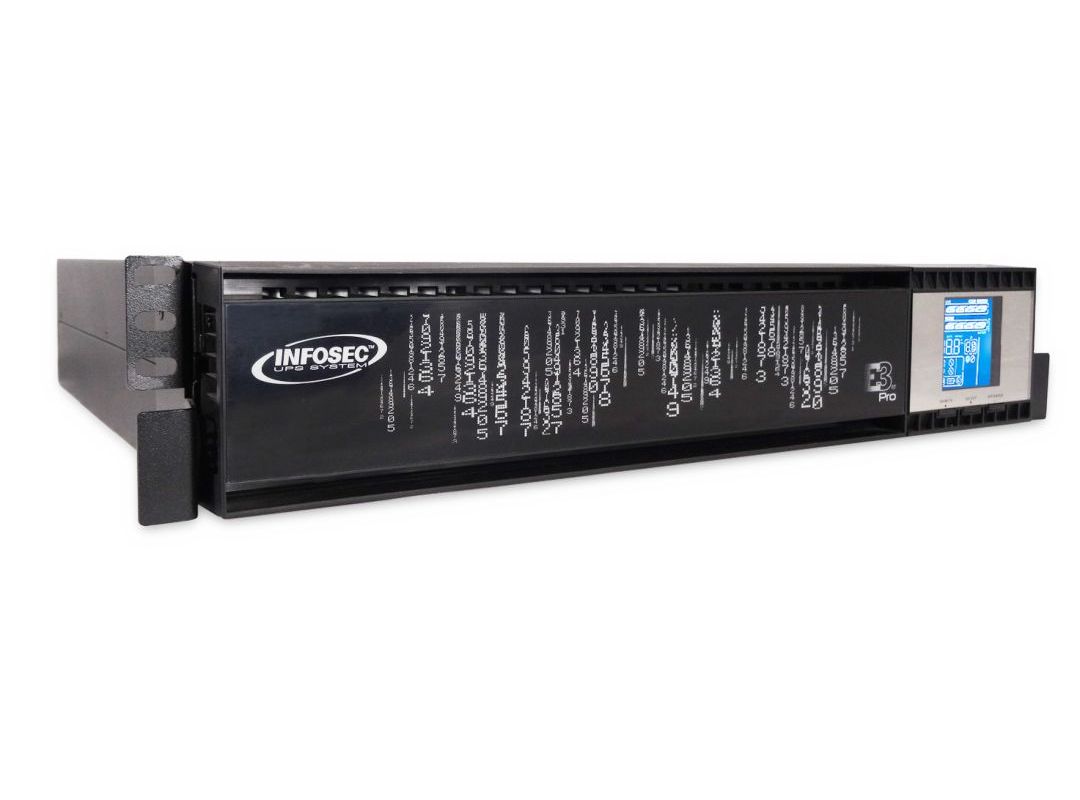

E3 Pro RT : rack and tower solution
Power factor of 0,9
– Optimal output power factor (0,9).
– High performance level
– High efficacy for critical uses Flexible design
– 2 in 1 design for simplified installation Programmable outlets Possibility of easily and independently controlling different types of loads. During a power outage, the backup time of the most strategic and essential equipment is favored, in detriment of non-critical equipment connected to the programmable outlets. The management of these outlets is easily done via the Infopower software. 1U rack format E3 Pro 1000 RM fits perfectly into a 19″ server bay thanks to its small vertical footprint (1U). Indicators Audible alarms and LED indicators showing the status of the UPS. Advantages of the E3 Pro 1000 RM E3 Pro RT 1 to 3k VA E3 Pro RT 5 and 6k VA Tower position Rack position E3 Pro 1000 RM: the 1U rack solution EPO / CPAU emergency stop command This port is dedicated to the installation of a CPAU for the safety of personnel and equipment in an emergency and allows total and immediate shutdown of the UPS (5-6-10k RT models). User-friendly LCD display
– Precision and user-friendliness: status and parameter values given in real time
– Rotating LCD display which adapts to the tower configuration
– Intuitive display on the front panel: direct access to the UPS settings for modifying operational modes
Benefits of the E3 Pro RT
The UPSs of the E3 Pro RT range are equipped with powerful integrated chargers to ensure long backup time:
– from 1A to 3.5A for models 1 to 3k RT

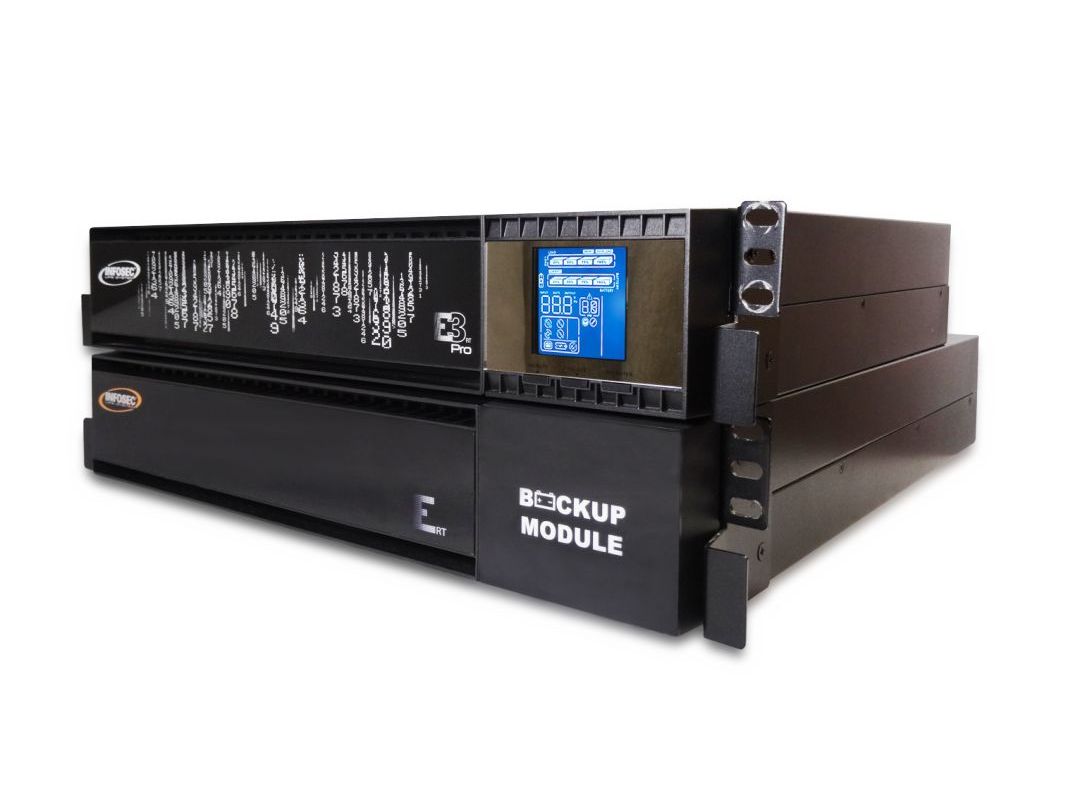

– from 1A to 6A for models from 5 to 10k RT Up to 4 backup modules can be connected to the UPS.
