Characteristics
On line Performance
Exclusively rack
Presentation
Reliable protection for IT devices
The E3 Live range is equipped with On Line Performance technology controlled by microprocessor, thus providing perfect protection for networks and IT loads. Its quality sine wave output current adequately protects servers and other IT equipment. Service continuity is therefore ensured for all connected equipment in the event of a power cut.
Ideal format
The E3 Live range is available in 2 versions for simplified installation depending on required needs (accessories supplied):

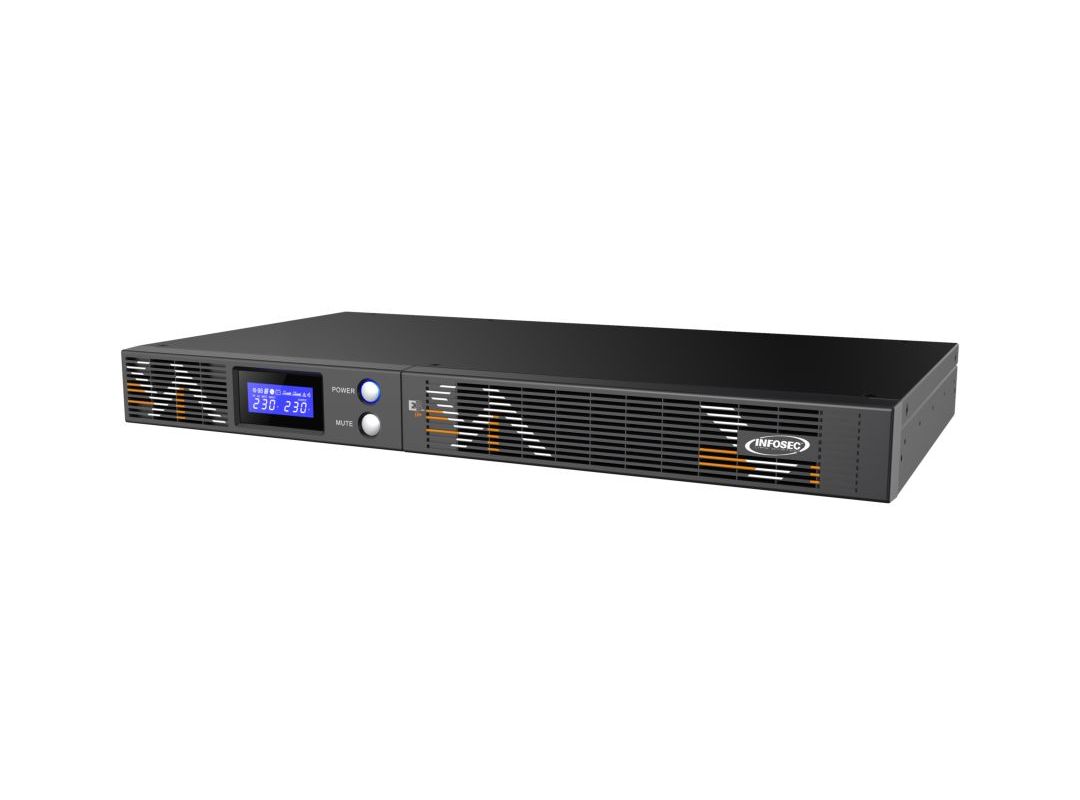

– E3 Live RM: from 500 to 1500 VA, in 1U rack format, can be easily integrated into a 19” server bay
– E3 Live RT: 2200 and 3000 VA, in versatile 2U rack/tower format for easy integration into a wide variety of environments: horizontally, in a patch bay, or vertically in a “tower” position (versatile fixing brackets included).
Features adapted to all situations
E3 Live UPSs offer great flexibility thanks to their wide connectivity:

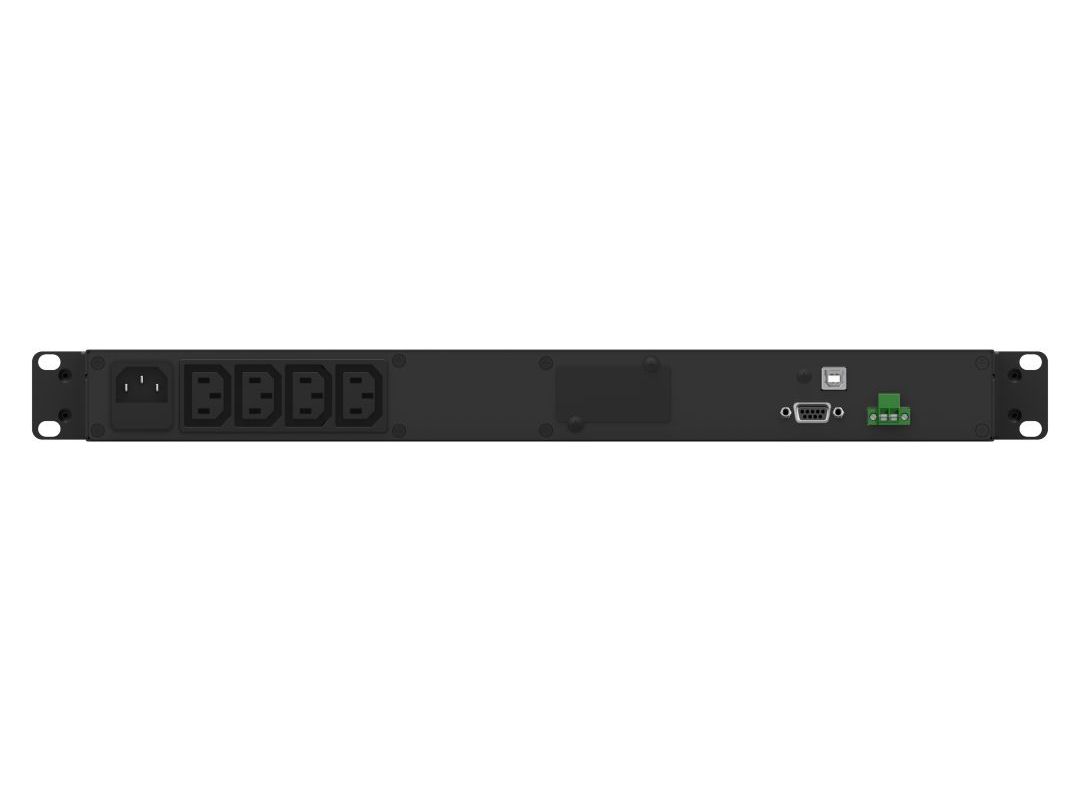

– 4 to 9 backup outlets (depending on the model)
– RS232, USB (HID protocol) communication ports as well as an SNMP slot allow remote communication and management of the various connected devices.
– 2 RJ11/45 connectors also provide protection for Tel/ADSL line (RT models).
– An EPO port to ensure the safety of personnel and connected equipment
Compact but complete format
– 2 in 1 design for simplified installation
– 1U rack, for 500 to 1500 VA power (mounting brackets included)
– 2U, versatile rack/tower, for 2200/3000 VA power (mounting brackets included)
Communication
Local control with Power Master monitoring software (downloadable):
– Automatic closing of files in the event of a power failure: data preservation of all computers within a computer network
– Visual alarm in case of power failure Local control with automatic USB HID detection:
– UPS battery recognition via the computer operating system
– Display of battery status notifications according to the settings made by the operating system (Microsoft, Mac, Linux). Network control with SNMP agent (optional):
– An SNMP slot allows the connection of an SNMP agent and the use of the associated software for remote control of the UPS.
EPO/CPAU emergency stop command
This port is for the installation of a CPAU for personnel and equipment safety in an emergency and allows total and immediate shutdown of the UPS
