Interface |
|
| Ethernet Port | 8x 10/100/1000Mbps Ethernet, RJ-45 |
| Fiber Slot | 2x 100/1000Mbps SFP |
| Button | 1x Factory Reset Button |
PoE |
|
| PoE Capable Ports | 8 |
| PoE Standards | PoE/PoE+(802.3af/802.3at), Type mode A |
| PoE Power Budget | 110 watts |
Capacity |
|
| Buffer Size | 1.5 Mbit |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.9 Mpps (64 bytes) |
| MAC Address Table | 4k |
| Jumbo Frame | Up to 9KB |
Networking Standards |
|
| IP Version | IPv4 |
| Ethernet Standards | 802.3af PoE 802.3at PoE+ 802.3 10Base-T 802.3u 100Base-T 802.3ab 1000Base-T 802.1q Tag-based VLAN 802.3x Flow Control 802.3 Auto-Negotiation 802.1p Class of Service 802.3ad LACP 802.3az EEE |
VLAN |
|
| Max.Number of VLAN | 10 |
| VLAN Type | 802.1q Tag-based, Port-based |
QoS |
|
| Number of QoS Queues | 4 |
| Rate Limit | Port-Based Ingress and Egress |
| Queue Scheduling | SPQ, WFQ |
| CoS (Class of Service) | 802.1p CoS |
Traffic Control |
|
| Storm Control | Broadcast, Multicast, Unicast |
| Loop Prevention | |
Link Aggregation |
|
| Max. Number of Group | 2 |
| Member Port | GE7 & GE8, SFP1 & SFP2 |
| Type | LACP |
Multicast |
|
| IGMP Snooping | v2 |
| Max. Number of Multicast Group | 128 |
Management |
|
| Web Interface | HTTP |
| Diagnostics Tools | Port Mirroring |
| Config File Export/Import | |
| Managed by Vigor Router SWM | |
| Managed by VigorConnect | |
Physical |
|
| 19-inch Rack Mountable | Â Mouting Kit Included |
| Power Input | AC 100-240V @ 2.6A |
| Max. Power Consumption | 141.3 watts |
| Dimension | 265mm x 184mm x 44mm |
| Weight | 1.68 kg (3.7 lb) |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -20 to 70°C |
| Operating Humidity | 10 to 90% non-condensing |
| Storage Humidity | 5 to 90% non-condensing |

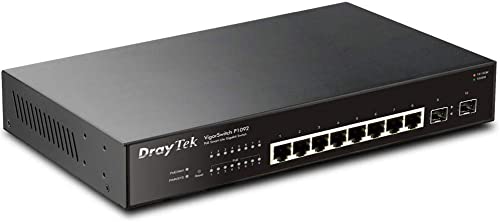

DrayTek VigorSwitch P1092 10-Port Smart Lite Managed Gigabit PoE+ Switch Price In Dubai UAE
