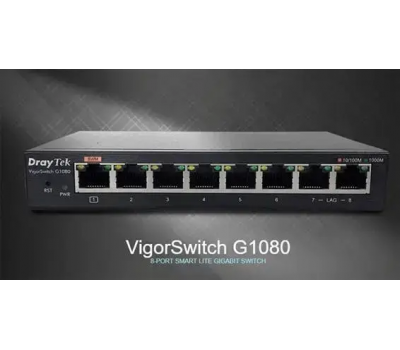

DrayTek VigorSwitch G1080 8-Port Smart Lite Managed Gigabit Switch

DrayTek VigorSwitch G1080 8-Port Smart Lite Managed Gigabit Switch

Small Size, Great Performance

DrayTek VigorSwitch G1080 is an extremely compact 8-port smart lite Gigabit switch. It provides basic management including 802.1q VLAN, 802.1p CoS QoS, Link Aggregation, Storm Control, and Loop Prevention. Perfect for Smart home/SOHO with needs of network efficiency and security.

Interface
Ethernet RJ-45	8x 10/100/1000Mbps Ethernet, RJ-45
Button	1x Factory Reset Button
Capacity
Buffer Size	96 Kbit
Switching Capacity	16 Gbps
Forwarding Rate	11.9 Mpps (64 bytes)
MAC Address Table	4k
Jumbo Frame	Up to 9KB
Networking Standards
IP Version	IPv4
Ethernet Standards	802.3 10Base-T 802.3u 100Base-T 802.3ab 1000Base-T 802.1q Tag-based VLAN 802.3x Flow Control 802.3 Auto-Negotiation 802.1p Class of Service 802.3ad LACP 802.3az EEE
VLAN
Max.Number of VLAN	8
VLAN Type	802.1q Tag-based
QoS
Number of QoS Queues	4
Rate Limit	Port-Based Ingress and Egress
Queue Scheduling	WFQ, WRR
CoS (Class of Service)	802.1p CoS
Traffic Control
Storm Control	Broadcast, Multicast, Unicast
Loop Prevention
Link Aggregation
Max. Number of Group	1
Max. Number of Member in Each Group	2 (Port 7 and Port 8)
Type	LACP
Multicast
IGMP Snooping	v2
Max. Number of Multicast Group	128
Management
Web Interface	HTTP
Config File Export/Import
Managed by Vigor Router SWM
Managed by VigorConnect
Physical
Power Input	DC 5V @ 1A
Max. Power Consumption	3.3 watts
Dimension (L x W x H)	154mm x 85mm x 26mm
Weight	320g (11.3oz)
Operating Temperature	0 to 45?C
Storage Temperature	-20 to 70?C
Operating Humidity	10 to 90% non-condensing
Storage Humidity	5 to 90% non-condensing
Certificate	?
