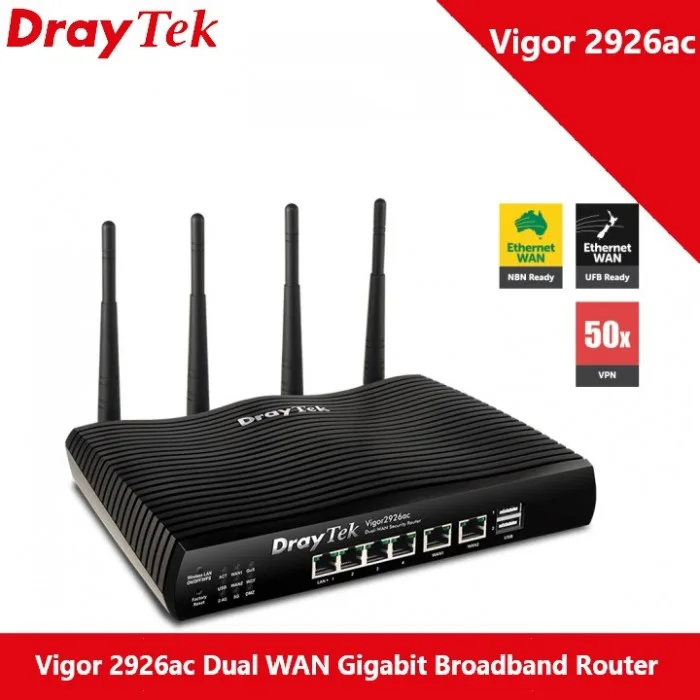

DrayTek DrayTek 2926ac
Description
Hardware Interface
- 2 x 10/100/1000Base-TX, RJ-45 (WAN1/WAN2)
- 4 x 10/100/1000Base-TX LAN, RJ-45 (Configurable Physical DMZ on Port4)
- 2 x Detachable Antennas (n model)
- 4 x Detachable Antennas (ac,Vac Model)
- 2 x USB Host 2.0
- 1 x Factory Reset Button
- 1 x Wireless On/Off/ WPS Button (n/ac/Vac model)
- 2 x FXS and 1 x Life Line Port, RJ11 (Vac Model)
Temperature
- Operating: 0°C~45°C
- Storage: -25°C~70°C
- Humidity: 10%~90% (non-condensing)
- Power Adapter: DC 12V @ 1.5A~2A
- Power Consumption: 19~24 Watt
- Dimension: L241*W165*H44 (mm)
WAN Protocol
- Ethernet WAN:
- DHCP Client
- Static IP
- PPPoE
- PPTP / L2TP (WAN-2 only)
- 802.1q Multi-VLAN Tagging
- IPv6 Connection Type:
- Dual Stack: PPP, DHCPv6 Client, Static IPv6
- Tunnel Mode: TSPC, AICCU, 6rd, 6in4 Static Tunnel
- USB WAN:
- PPP (3G) / CDC driver (3G)
- Support IPv6 protocol: TSPC/AICCU
Dual WAN
- Load-Balance / Route Policy
- Outbound policy-based load-balance
- WAN Connection Failover
- Multiple-VLAN
LAN
- Support IPv6 LAN
- Port-based / Tag-based VLAN
- Bind IP to MAC Address:
- Disable / Enable / Strict Bind
- IP Bind list: 1024 entries
- LAN Port Mirror
- Wired 802.1x
- Web Portal
- Support IP Pool Count more than 253 (up to 1022) for LAN1~3 subnet
- 8 x Multiple Subnet LAN
Firewall
- DMZ Host: Port-redirection, Open Port, Port Triggering
- User-based / Rule-based Firewall
- Object-based Firewall：SPI (Stateful Packet Inspection) (Flow Track)
- DoS Prevention
- Time Schedule Control
- DNS Filter Enhancement
- User Management
- Firewall Wizard Mode and Advanced Mode
VPN
- Up to 50 VPN Tunnels (including 25 SSL VPN tunnels)
- VPN Wizard
- VPN Trunk with Backup / Load Balance
- Protocol: PPTP, IPsec, L2TP, L2TP over IPsec, GRE over IPSec
- Encryption: MPPE and hardware-based AES/DES/3DES
- Authentication: MD5, SHA-1
- IKE Authentication: Pre-shared Key and Digital Signature (X.509)
- LAN-to-LAN, Teleworker-to-LAN (remote user dial-in)
- DHCP over IPsec
- IPsec NAT-traversal (NAT-T)
- Dead Peer Detection (DPD)
- VPN Pass-through
- mOTP
Bandwidth Management
- QoS
- Guarantee bandwidth for VoIP
- Class-based bandwidth guarantee by user-defined traffic categories
- DiffServ Code Point classifying
- 4-level priority for each direction (Inbound/Outbound)
- Bandwidth borrowed
- Bndwidth/Session limitation
- Smart Bandwidth Limit
- config by ip range
- Layer-3 (TOS/DSCP) QoS
- Layer-2 (802.1p) QoS
- WAN budget
Network Feature
- Hotspot Web Portal
- Packet Forwarding Acceleration
- DHCP client/relay/server
- DHCP Option: 1,3,6,51,53,54,58,59,60,61,66,125
- IGMP v2/v3
- LAN DNS/DNS Forwarding
- Dynamic DNS
- NTP Client
- Call Scheduling
- RADIUS/TACACS+ Client
- Internal RADIUS Server
- Active Directory/LDAP compatible (client)
- DNS Cache/Proxy and LAN DNS
- UPnP 50 sessions
- Wake on LAN
- Bonjour service
- Routing Protocol:
- Static Routing
- RIP v1/v2
- BGP
- Triple-Play Application
- IGMP snooping/proxy
- 6 x Multiple Subnet LAN
- Support Smart Monitor (Up to 30 PCs)
Central Device Management
- AP Management
- VPN Management
- Switch Management
- External Devices
CSM (Content Security Management)
- APP Enforcement
- Support APPE Signature Upgrade by license
- URL Content Filter
- Access Control : URL Keyword Blocking (White/Black List)
- Web Feature : Java Applet, Cookies, Active X, Compressed, Executable, Multimedia File Blocking
- Web Content Filter (support Cyren and BPjM)
- DNS Filter
USB
- Printer Sharing
- File System
- Support FAT32 File System
- Support FTP Function for File Sharing
- 3.5G (HSDPA) and 4G (LTE) as WAN3/WAN4 by using USB dongle (can support Dual USB WAN)
- USB Device Status (disk/modem/printer/sensor)
- Support USB Temperature Sensor
- Support file sharing (DrayTek’s own SMB protocol stack)
Network Management
- Web-based User Interface (HTTP/HTTPS)
- CLI (Command Line Interface, Telnet/SSH)
- Administration Access Control
- Configuration Backup/Restore
- Built-in Diagnostic Function
- Firmware Upgrade via TFTP/HTTP/TR-069
- Logging via Syslog
- SNMP v2/v3
- Support SMS/E-mail Alert
- Management Session Time Out
- Two-level Management (Admin/User Mode)
- External device detection (master mode)
- TR-069/TR-104
- Support Multiple-Firmware Upgrade Utility (MFUU)
- Dashboard
Wireless AP (for n/ac/Vac model)
- 2.4 GHz (for n model)
- 2.4 + 5 GHz (for ac/Vac model)
- Wireless Client List
- Wireless LAN Isolation
- 64/128-bit WEP
- WPA/WPA2
- Hidden SSID
- WPS
- MAC Address Access Control
- Access Point Discovery
- WDS (Wireless Distribution System)
- 802.1x Authentication
- Multiple SSID
- Wireless Rate-control
- WMM
- SSID VLAN Grouping with LAN Port (Port-based VLAN)
GTIN Number
- 4712909123136
