DrayTek DrayTek Vigor 2862 Lac

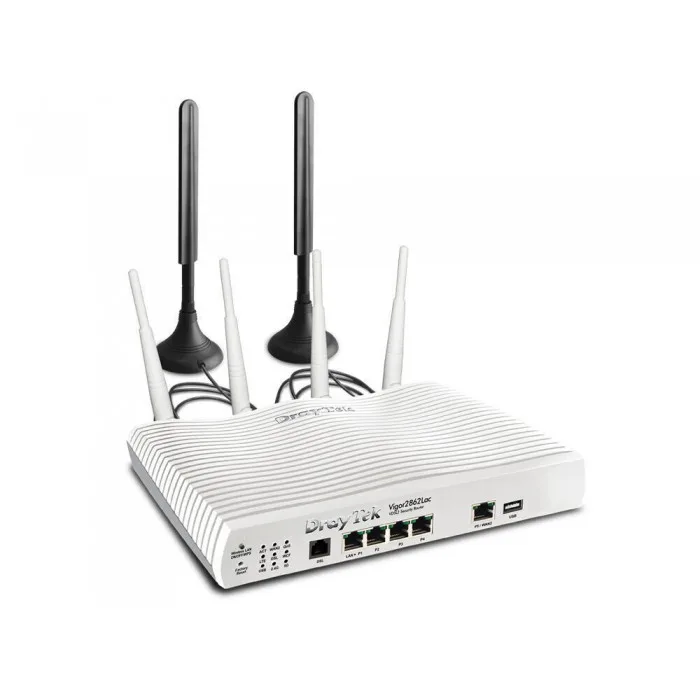

DrayTek Vigor2862 Lac VDSL2/ADSL2+ & Built-in LTE Load Balancing VPN Router
About
Vigor2862 LTE Series is a VDSL2/ADSL2+ Router with built-in 3G/4G/LTE modem, in addition to the DSL connection, cellular connectivity can be simply added by inserting a SIM card. Up to 4 Internet access can be set up on Vigor2862 LTE Series to provide high network availability. Except for being a reliable Internet gateway, it also provides comprehensive firewall and content security management (CSM) features to protect the local network, and it can also be a VPN gateway for up to 32 simultaneous VPN connections, to allow secure connections over the Internet. The Vigor2862 LTE Series comes with 3 models, Vigor2862L; Vigor2862Ln, which has 802.11n 2.4G WLAN built-in; and Vigor2862Lac, which has dual-band WLAN built-in and compliant with the latest Wi-Fi standard, 802.11ac Wave 2, delivers data rate up to 1733Mbps + 300Mbps.
2862l-fornt-panel
Comprehensive DSL Connectivity & Built-in Cellular Connectivity
The VDSL/ADSL modem built-in Vigor2862 LTE Series offers comprehensive DSL connectivity which makes it compatible with various versions of xDSL, including ADSL, ADSL2, ADSL2+, VDSL, and VDSL2. Vigor2862 LTE Series also automatically detects your line type and fallback is supported. Vigor2862 LTE Series is integrated with an LTE modem that accepts the standard size SIM cards. With just a SIM card, you may add a wireless Internet connectivity to share the traffic load or backup the primary link. The LTE WAN supports download speed up to 150 Mbps, upload speed up to 50 Mbps, and it works with worldwide cellular networks including 4G and 3G, and can automatically fall back to 3G when 4G is not available.
Except for the DSL interface, there is also a Gigabit Ethernet WAN port that can be used for any types of connection, and a USB port for additional 3G/4G/LTE USB modem to add more connectivity to share the traffic load or being the backup of primary WAN links.
2862l-fornt-panel
Flexible LAN Management
2862n-multi-subnet
The Virtual LAN (VLAN) features allow you to separate the LAN clients into different logical domains thus to increase the security and network efficiency. Vigor2862 LTE Series supports 802.1Q standard and can build a Tag-based VLAN system with an 802.1Q-support switch, Port-based VLAN is also supported that each LAN port can be configured as a member of different VLAN and be isolated from each other without the use of VLAN tag.
Up to 8 IP subnet can be enabled on Vigor2862 LTE Series, so each VLAN can use different IP addressing space. Moreover, IP subnet 1 to 3 could be a subnet larger than class C, supports up to 1022 IP addresses.
Vigor2862 LTE Series also supports LAN DNS feature, which allows you to manage the domain name resolution on the local network, and Hotspot Portal feature, which helps you collect the information of guest users, informing them terms and conditions, and presenting a landing page to guest.
Secure Business Network
Vigor2862 LTE Series has implemented Stateful Packet Inspection (SPI) Firewall, flexible filtering rules can be set up to accept or deny packets based on source IP, destination IP, protocol, port number, or even the packet’s contents. Content Filtering by URL keyword or application can help you to prevent time and network resource wasting on inappropriate network activities.
With an annual subscription to CYREN Web Content Filtering service, you may also filter the websites by their categories, and set up restrictions to block the whole categories of websites (such as Social Networking, Gambling.. etc.) without the need to specify every site you would like to block. The CYREN service is constantly updating the categorization, and a free 30-day trial is included in each new router.
Vigor2862 LTE Series is also a robust VPN server which is perfect for a company based on multiple locations or has teleworkers. The VPN is compliant with all common industry standard protocols, and its compatible with third-party VPN devices.
2862b-multi_site_business_deployment
Central Management
Vigor2862 LTE Series can act as a Central Management portal for the other Vigor devices on the network, including VigorAPs, Vigor Switches, and even Vigor Routers. With Central Management feature, device maintenance (such as firmware upgrading, configuration backup and restore) and monitoring can all be done from a single portal, which is the Web User Interface of Vigor2862 LTE Series.
2862-central_management
Vigor2862 LTE Series can manage up to 20 VigorAPs on its LAN and works as an AP controller. Automatic Provisioning can be triggered when a VigorAP newly join the network and this makes AP deployment faster. You may also get the client or traffic history of all the APs from Vigor2862 LTE Series, and set up load balancing rules for the APs.
Central Switch Management allows you to manage up to 10 Vigor Switches from Vigor2862 LTE Series, the status of every port can be directly viewed from the router. Vigor2862 LTE Series also supports VLAN configuration for the switches, setting that matches the router’s VLAN settings and the switch hierarchy is automatically provided which makes the VLAN configuration easier.
