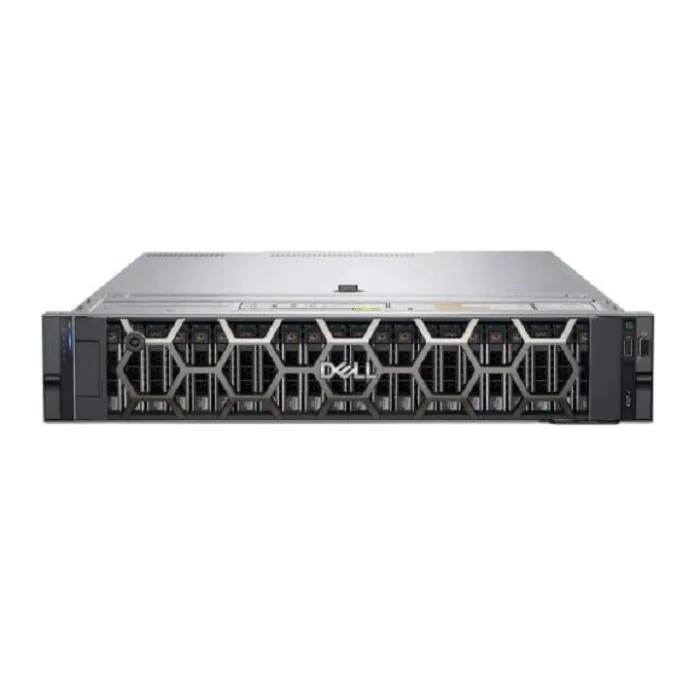

Dell Dell PowerEdge R750xs
| Dell 2U Rack Server Specifications | |
|---|---|
| Processor | |
| Type | Up to two 3rd Gen Intel Xeon Scalable processors |
| Max Cores | Up to 32 cores per processor |
| Memory | |
| DIMM Slots | 16 DDR4 DIMM slots |
| Max Capacity | Up to 1 TB with RDIMMs |
| Speed | Up to 3200 MT/s |
| Supported | Registered ECC DDR4 DIMMs only |
| Storage Controllers | |
| Internal | PERC H345, H355, H745, H755, H755N, HBA355i, S150 Internal Boot: Dual SD Module, BOSS-S2 (2x M.2 SSDs), USB |
| External | PERC H840, HBA355e |
| Drive Bays | |
| Front Bays | • 0 bays • Up to 8x 3.5″ SAS/SATA – max 128 TB • Up to 12x 3.5″ SAS/SATA – max 192 TB • Up to 8x 2.5″ SAS/SATA/NVMe – max 61.44 TB • Up to 16x 2.5″ SAS/SATA – max 122.88 TB • 16x 2.5″ (SAS/SATA) + 8x 2.5″ (NVMe) – max 184.32 TB |
| Rear Bays | Up to 2x 2.5″ SAS/SATA/NVMe – max 15.36 TB |
| Power Supply | |
| Options | • 600W / 800W / 1100W / 1400W (Platinum) • 1100W Titanium • All hot-swap redundant • -48Vdc support (CAUTION: for -48Vdc to -60Vdc input only) |
| Cooling | |
| Cooling Type | Air Cooling |
| Fan Options | Standard / High Performance Silver / High Performance Gold Up to 6 hot-swap fans |
| Physical Dimensions | |
| Height | 86.8 mm (3.41 inches) |
| Width | 482.0 mm (18.97 inches) |
| Depth | 707.78 mm (27.85″) without bezel / 721.62 mm (28.4″) with bezel |
| Form Factor | 2U Rack Server |
| Embedded Management | |
| Features | iDRAC9, iDRAC Service Module, iDRAC Direct, Quick Sync 2 (wireless module) |
| OpenManage Software | |
| Standard | • OpenManage Enterprise • Power Manager plugin • SupportAssist plugin • Update Manager plugin |
| Mobility | OpenManage Mobile |
| Integration | BMC Truesight, Microsoft System Center, Red Hat Ansible, VMware vCenter/vROps, IBM Tivoli, Micro Focus Ops Manager, Nagios Core, Nagios XI |
| Security Features | |
| Included | • Cryptographically signed firmware • Secure Boot, Secure Erase • Silicon Root of Trust • System Lockdown (iDRAC9 Enterprise/Datacenter) • TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Networking | |
| Embedded NIC | 2 x 1 GbE LOM |
| Options | 1 x OCP 3.0 |
| Ports | |
| Front | 1 x iDRAC Direct (Micro-USB), 1 x USB 2.0, 1 x VGA |
| Rear | 1 x USB 2.0, 1 x USB 3.0, 1 x Serial (opt), 2 x Ethernet, 1 x VGA |
| Internal | 1 x USB 3.0 (optional) |
| Expansion Slots | |
| PCIe | Up to 5 x PCIe Gen4 + 1 x PCIe Gen3 • 3 x16 Gen4 low-profile • 2 x16 Gen4 low-profile (optional) |
| Supported OS & Hypervisors | |
| Supported Platforms | Ubuntu Server LTS, Citrix Hypervisor, Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi |
