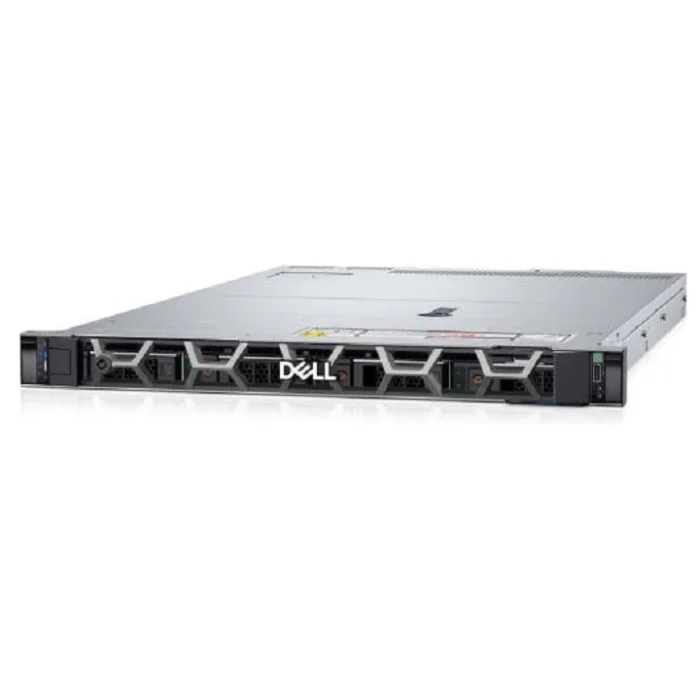

Dell Dell PowerEdge R660xs
| Dell 1U Rack Server Specifications | |
|---|---|
| Processor | |
| Supported CPUs | • Up to 2x 5th Gen Intel Xeon Scalable (up to 28 cores) • 4th Gen Intel Xeon Scalable (up to 32 cores per processor) |
| Memory | |
| Slots | 16 DDR5 DIMM slots |
| Max Capacity | 1.5 TB |
| Speed | Up to 5200 MT/s |
| Type | Registered ECC DDR5 RDIMMs only |
| Storage | |
| Front Bays | • 0 drive bay • Up to 4 x 3.5″ SAS/SATA (max 96 TB) • Up to 8 x 2.5″ SAS/SATA/NVMe (max 122.88 TB) • Up to 10 x 2.5″ SAS/SATA/NVMe (max 153.6 TB) |
| Rear Bays | Up to 2 x 2.5″ SAS/SATA/NVMe (max 15.2 TB) |
| Storage Controllers | |
| Internal | • PERC H965i, H755, H755N, H355 • HBA355i, HBA465i • Boot: BOSS-N1 (HWRAID, 2 x M.2 NVMe SSDs cold swap) or USB |
| External | HBA355e (non-RAID) |
| Software RAID | S160 |
| Power Supply | |
| Types | • 1800W Titanium • 1400W Titanium / Platinum / HVDC • 1100W Titanium / -48V to -60V DC • 800W Platinum • 700W Titanium • 600W Platinum All Hot-Swap Redundant |
| Cooling | |
| Cooling Type | Air Cooling |
| Fans | Up to 7 hot-swappable fans (STD / Gold VHP) |
| Dimensions & Weight | |
| Height | 42.8 mm (1.68 in) |
| Width | 482 mm (18.97 in) |
| Depth | • 748.79 mm (29.85 in) with bezel • 712.95 mm (28.05 in) without bezel |
| Form Factor | 1U Rack Server |
| Embedded Management | |
| • iDRAC9, iDRAC Direct, RESTful API (Redfish), iDRAC Service Module • Quick Sync 2 wireless module |
|
| OpenManage Software & Integrations | |
| Software | • CloudIQ for PowerEdge • OpenManage Enterprise, Power Manager, Service Plugin • VMware vCenter & Microsoft System Center Integrations • Update Manager, Windows Admin Center |
| Mobile | OpenManage Mobile |
| Integrations | • ServiceNow • BMC Truesight • Red Hat Ansible Modules • Terraform Providers • VMware vRealize Ops |
| Security | |
| • Cryptographically signed firmware • Data-at-Rest Encryption (SEDs) • Secure Boot, Secure Erase • Silicon Root of Trust, Hardware Integrity Check • TPM 2.0 (FIPS, CC-TCG, China NationZ) • System Lockdown (iDRAC9 Enterprise/Datacenter) |
|
| Networking | |
| Embedded NIC | 2 x 1 GbE LOM |
| Expansion | 1 x OCP 3.0 card (optional) |
| Ports | |
| Front Ports | 1 x iDRAC Direct (Micro-AB USB), 1 x USB 2.0, 1 x VGA |
| Rear Ports | 1 x Dedicated iDRAC Ethernet, 1 x USB 2.0, 1 x USB 3.0, 1 x VGA, 1 x Serial (optional) |
| Internal Ports | 1 x USB 3.0 (optional) |
| PCIe Slots | |
| 1 CPU Config | Up to 2 PCIe (1 x16 Gen4, 1 x8 Gen5) |
| 2 CPU Config | • Up to 3 PCIe Gen4 (1 x16 + 2 x8) • Or up to 2 PCIe Gen5 (1 x16 + 1 x8) |
| Operating System Support | |
| • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi • Canonical Ubuntu Server LTS |
|
