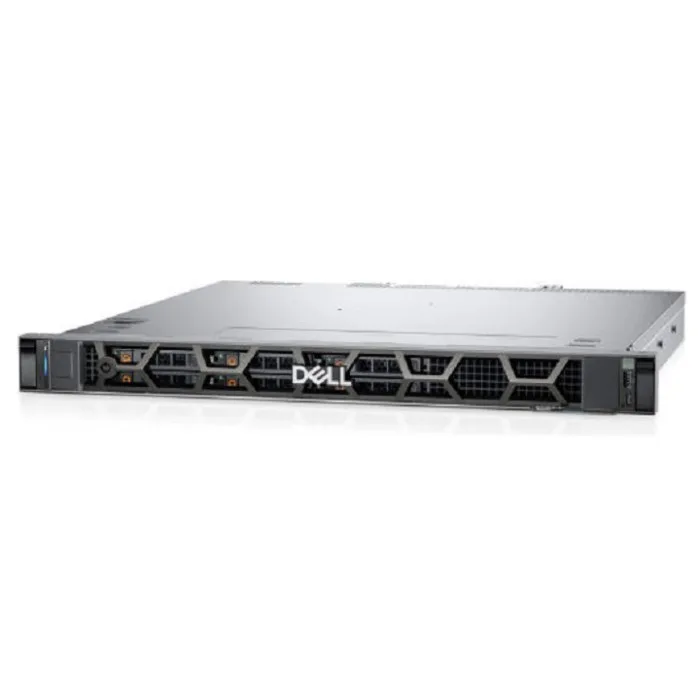

Dell Dell PowerEdge R260
| Dell PowerEdge R250 – Server Specifications | |
|---|---|
| Form Factor | 1U Rack Server |
| Processors | • 1x Intel Xeon E-2400 Series (up to 8 cores) • or 1x Intel Xeon 6300 Series • or 1x Intel Pentium G7400/G7400T (2 cores) |
| Memory | • 4x DDR5 UDIMM slots • Max 128 GB • Up to 4400 MT/s • ECC UDIMMs only |
| Storage Controllers | • Internal: HBA355i, PERC H355, PERC H755 • Boot: BOSS-N1 (HWRAID, 2x M.2 SSDs), Internal USB 3.0 • External: HBA355e (non-RAID) • Software RAID: S160 |
| Drive Bays | • Up to 2x 3.5″ cabled SAS/SATA (max 32TB) • Up to 6x 2.5″ hot-plug SAS/SATA HDD/SSD (max 46.08TB) |
| Power Supply Options | • 450W Platinum (100–240VAC), non-redundant • 700W Titanium (200–240VAC or 240VDC), non-redundant |
| Cooling | Air cooling, up to 6x cabled fans |
| Dimensions | • Height: 42.8 mm (1.68 in) • Width: 482.0 mm (18.97 in) • Depth (no bezel): 461.14 mm (18.15 in) • Depth (with bezel): 496.8 mm (19.55 in) • Depth (w/ cable PSU): 426.6 mm (16.80 in) |
| Embedded Management | • iDRAC9 • iDRAC Direct • iDRAC RESTful API (Redfish) • iDRAC Service Manual |
| Bezel | Security bezel or optional filter bezel |
| OpenManage Software | • OpenManage Enterprise • OpenManage Power Manager, Update Manager, Service plugins • CloudIQ for PowerEdge • Integration with vCenter, System Center, Windows Admin Center |
| OpenManage Integrations | • BMC Truesight • Microsoft System Center • ServiceNow • Red Hat Ansible Modules • Terraform Providers • VMware vCenter & vROps |
| Security Features | • Cryptographically signed firmware • Data-at-Rest Encryption (SEDs) • Secure Boot, Secure Erase • Secured-core server, System Lockdown • Silicon Root of Trust • TPM 2.0 FIPS / CC-TCG certified |
| Embedded NIC | 2 x 1GbE LOM |
| GPU Options | Not supported |
| Ports | Front: 1x iDRAC Direct (Micro-AB USB), 1x USB 2.0 Rear: 1x iDRAC Ethernet, 1x USB 2.0, 1x USB 3.2 Gen1, 1x VGA, 1x Serial Internal: 1x USB 3.2 Gen1 |
| PCIe | • Up to 2x PCIe Gen4 slots (via Gen4 riser) • Slot 1: x8 bandwidth, half-length, low-profile • Slot 2: x8 bandwidth, half-length, low-profile |
| Supported Operating Systems | • Microsoft Windows Server with Hyper-V • Canonical Ubuntu Server LTS • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi |
Download Dell PowerEdge R260 Datasheet
