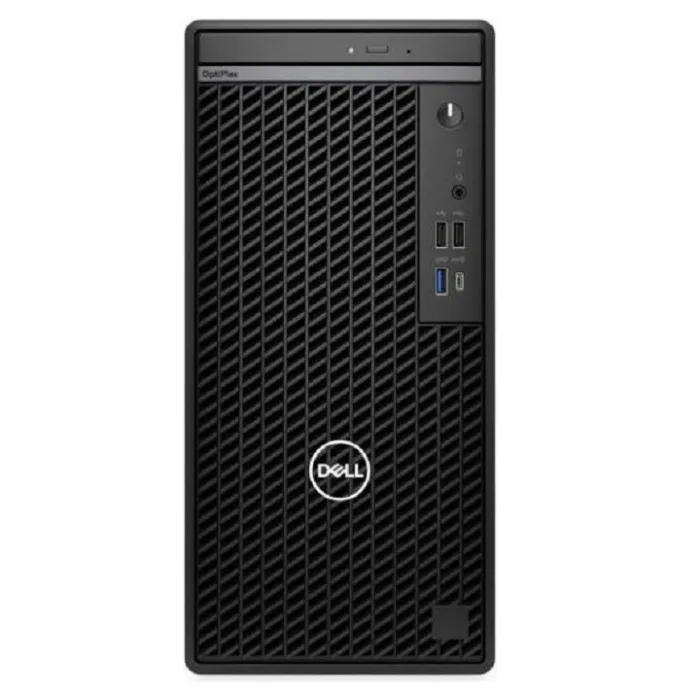

Dell Dell Optiplex 7020 MT
| Desktop Specifications | |
|---|---|
| Processor | |
| Options | Intel 4th Gen Core i7/i5 (Quad Core), Core i3 (Dual Core), Pentium Dual-Core (PDC) |
| Chipset | |
| Chipset | Intel® Q87 Express Chipset |
| Operating System Options | |
| Microsoft Windows 8 Standard 64-bit, Windows 8 Pro 64-bit Microsoft Windows 7 Professional SP1 (32/64-bit) Ubuntu | |
| Graphics | |
| Integrated | Intel HD Graphics 4600 (i5/i7) Intel HD Graphics 4400 (i3) Intel HD Graphics (PDC) |
| Discrete | Optional AMD graphics solutions |
| Memory | |
| Type | Non-ECC Dual-channel 1600MHz DDR3 SDRAM |
| Slots | Up to 4 DIMM slots |
| Max Capacity | Up to 16GB |
| Networking | |
| LAN | Integrated Intel I217LM Ethernet LAN 10/100/1000 |
| Wireless | Optional 802.11n wireless card |
| I/O Ports | |
| 4 x USB 3.0 (2 front, 2 rear) 6 x USB 2.0 (2 front, 4 rear) 1 x Internal USB 2.0 (MT only) 1 x RJ-45, 1 x Serial, 1 x VGA, 2 x DisplayPort, 2 x PS/2 2 x Line-in (stereo/microphone), 2 x Line-out (headphone/speaker) | |
| Removable Media | |
| Options | Optional optical disc drives, media card reader |
| Storage | |
| Options | Up to 1TB HDD, Supports Hybrid and SSD; Diskless option supported |
| Chassis Options | |
| Types | Minitower (MT), Small Form Factor (SFF) |
| Dimensions (MT) | 14.2 x 6.9 x 16.4 in (36.0 x 17.5 x 41.7 cm) |
| Bays | |
| MT | 2 x Internal 3.5″, 2 x External 5.25″ |
| Expansion Slots | |
| 1 x PCIe x16 (full height) 1 x PCIe x16 (wired x4, full height) 1 x PCIe x1 (full height) 1 x PCI (full height) | |
| Power Supply | |
| MT PSU | 290W Active PFC, up to 90% (80 PLUS Gold) or 85% (80 PLUS Bronze) |
| SFF PSU | 255W Active PFC, up to 90% (80 PLUS Gold) or 85% (80 PLUS Bronze) |
| Recommended Accessories | |
| Monitors: Dell UltraSharp (21.5″-30″), Dell Professional (17″-24″) Mounts: Dell Single Monitor Arm, Dual Monitor Stand Keyboards: USB Entry, Multimedia Pro, Smart Card Mouse: USB Optical, Laser Speakers: Dell 2.0/2.1 stereo systems, sound bar Printing: Dell Print Solutions (Mono, Color, Multifunction Lasers) | |
| Security Features | |
| TPM 1.2, Dell Data Protection Tools/Encryption Chassis lock slot, Optional Chassis Intrusion Switch BIOS and I/O interface security, Smart Card Keyboard Support Intel TXT, IPT, Anti-Theft, Computrace BIOS Support | |
| Systems Management | |
| Management | Intel® Standard Manageability; No Out-of-Band Management |
| Environmental & Regulatory | |
| Standards: ENERGY STAR 6.0, EPEAT Registered, CECP, WEEE, Japan Energy Law, RoHS (EU/China) Options: Carbon Offset, Asset Resale & Recovery Service USFF: BFR/PVC Free | |
Download Dell Optiplex 7020 MT Datasheet
