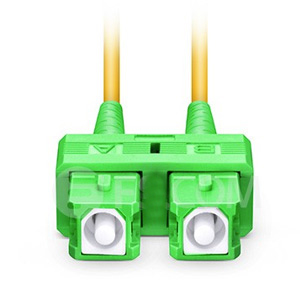

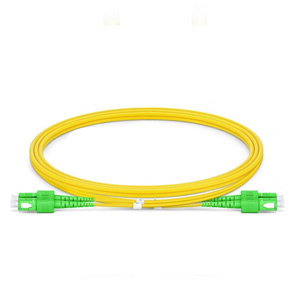

DConnect-SC-APC-to-SC-APC
Duplex OS2 Single Mode LSZH Fiber Optic Patch Cable 1 Mtr
| Connector Type | SC to SC | Polish Type | APC to APC |
| Fiber Mode | OS2 9/125?m | Wavelength | 1310/1550nm |
| Insertion Loss | ?0.3dB | Return Loss | ?60dB |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) | Minimum Bend Radius | 10mm |
| Attenuation at 1310 nm | 0.36 dB/km | Attenuation at 1550 nm | 0.22 dB/km |
| Fiber Count | Duplex | Cable Diameter | 2.0mm |
| Cable Jacket | PVC | Polarity | A(Tx) to B(Rx) |
| Operating Temperature | -20~70?C | Storage Temperature | -40~80?C |
