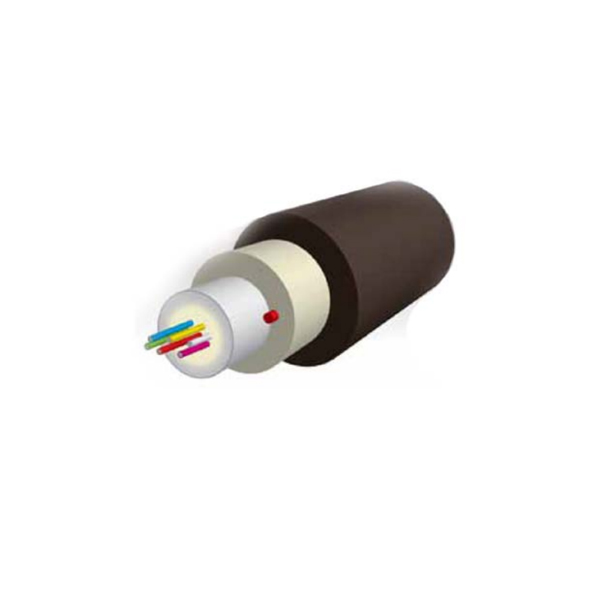

DConnect 6 core single-mode fiber optic central loose tube cable
D-CONNECT?s range of Central Loose Tube fiber optic cables are suitable for use on backbone networks. Our range includes Fiber counts from 2F up to 24F in OM1, OM2, OM3, OM4, & OS1/2 Fiber types. With options for Standard (non armor), corrugated steel, or steel wire armors for protection. All products are available as PE or LSZH.
FEATURES
? Choice of fiber type
? Choice of color-coded fibers
? 100% Dielectric
? Water blocking fiberglass reinforcements
? Choice of outer jacket material (PE/LSZH) & color
? OS2, OM1, OM2, OM3 and OM4

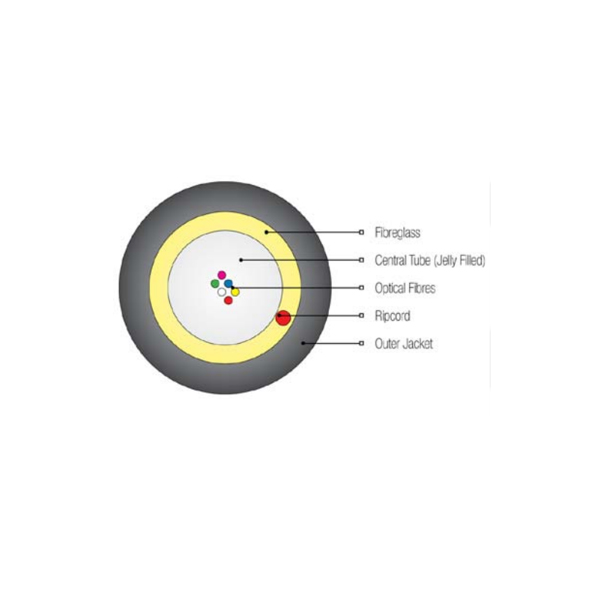

CHARACTERISTICS
? 250?m color-coded optical fiber
? Gel-filled loose-tubes for fiber lubrication and water-repelling?properties
? Ripcord
? Durable outer jacket
APPLICATIONS
? Ideal for internal/external duct applications
? Suitable for one or both end pre-termination
? Suitable for environments where rodent resistance is required
? Ideal for intra building links in campus environments
STANDARDS
Environmental and mechanical tests according to:
EN 187000 and CEI 60794.
Fire test according to:
UNE-EN 50266 (IEC 60332-3) / UNE-EN 50267 (IEC 60754-1) /
UNE-EN 50268 (IEC 61034-1/2).
1LSZH = Low-smoke Zero-halogen flame retardant
thermoplastic compound.
