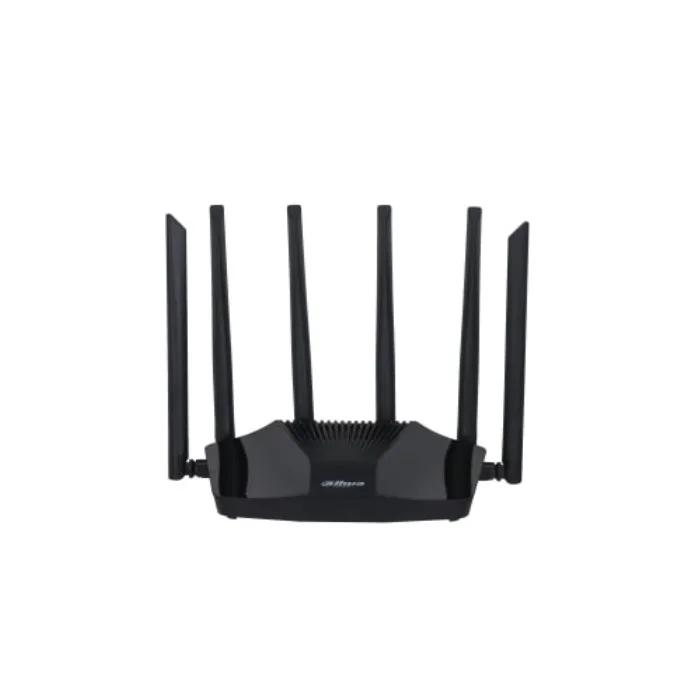

DAHUA Dahua WR5210-IDC
Function
Encryption Type WPA-PSK; WPA2-PSK
Network Mode Router
Configuration Management Web configuration
Firmware Update Web update
Wireless Certification CE; FCC
Power Consumption < 12 W
Security Mechanism IP/MAC filtering, hidden network name; WPA/WPA2, hidden SSID
Internet Protocol HTTP
NAT Port mapping
Software Functions WISP mode; Guest network; Parental control; One-click speed testing; Troubleshooting
Hardware
Wireless Standard IEEE802.11 a/n/ac; IEEE802.11 b/g/n
Reset Button Reset to factory settings
WAN Port 1 × 10 /100 /1000 Mbps RJ-45
WAN Port Connection Mode Static IP; DHCP; PPPoE
LAN Port 3 × 10 /100 /1000 Mbps RJ-45
Indicator Red: Network disconnected; Blue: Network connected
Performance
Working Frequency 125 MHz
Modulation Type OFDM
Antenna External omnidirectional antenna
Max. Output Power 8.6 W
Transmission Distance 150 m (492.13 ft) (open areas)
Air Interface Rate 300 Mbps; 867 Mbps
Optimal Transmission Distance 5 m–10 m (16.40 ft–32.81 ft)
MAC Table Size 1K
General
Operating Temperature –10 C to +55 C (+14 F to +131 F)
Storage Temperature –20 C to +70 C (–4 F to +158 F)
Operating Humidity 5%–95%
Product Dimensions 200.0 mm × 124.4 mm × 28.0 mm (7.9″× 4.9″ × 1.1″)
Gross Weight 0.89 kg (2.0 lb)
Net Weight 0.42 kg (0.9 lb)
Packing Dimensions 420.0 mm × 297.0 mm × 80.0 mm (16.5″ × 11.7″ × 3.1″)
RAM 128M
Power Input 12 V DC, 1A
