System | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor | Industry embedded micro-controller | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating System | Embedded Linux OS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operation Interface | WEB (PCAPP), local GUI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI Applications | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI by Camera | Face detection, face recognition, video metadata,
IVS (tripwire, intrusion, missing object, and more), people counting, smoking detection, call detection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI by Device | Face detection, face recognition, video metadata,
IVS (tripwire, intrusion, missing object, and more), people counting, smoking detection, call detection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS Performance (AI by Device) (Channel Number) | General model: 128-channel
Advanced model: 32-channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS Performance (AI by Camera) (Channel Number) | 256-channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Human Face Detection | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Human Face Properties | Supports 6 properties: Gender, age range (6 levels), glasses, expression (8 types), mouth mask, and beard | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection Performance (AI by Device) (1080P) (Channel Number) | 64-channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection Performance (AI by camera) (Channel Number) | 160-channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Human Face Recognition | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Database Capacity | 50 face databases with 300,000 face pictures in total | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Human Face Recognition Performance (AI by Device) (1080P)(Channel Number) | 64-channel with normal IP camera
160-channel with face detection IP camera (Totally 160 face pictures analyzed per second) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Human Face Recognition Performance (AI by camera) (Channel Number) | 160-channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ANPR | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Plate Database Capacity | 50 plate databases with 300,000 plate numbers in total
Supports allowlist and blocklist |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Plate Detection Performance by ITC Camera (Channel Number) | 64-channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Metadata | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Human Body Properties | Gender, age, sleeves length, top color, bottom type, bottom color, bag, rain coat, umbrella, hat, hairstyle, direction, hold a baby, mouth mask | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Vehicle Properties | Vehicle type, vehicle color, plate color, logo, calling, seatbelt, ornament, region | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Non-motorized Vehicle Properties | Non-motor vehicle type, non-motor vehicle color, number of passengers, umbrella, rain coat,bag , sleeve length, top color, hat, hair style, mouth mask | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Metadata Performance (AI by Device) (1080P) (Channel Number) | 32-channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Metadata Performance (AI by camera) (Channel Number) | 64-channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Parameters | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Remote Connection | 256-channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Bandwidth | Incoming bandwidth: 512Mbps recording bandwidth: 384Mbps outgoing bandwidth: 128Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/CIF/QCIF | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Decoding Capability | 3-channel 16MP/6-channel12MP (20fps)/7-channel12MP (15fps)/6-channel8MP (30fps)/12-channel8MP (15fps)/7-channel6MP(30fps)/9-channel5MP(30fps)/11-channel5MP (25fps)/12-channel4MP (30fps)/18-channel4MP (20fps)/19-channel3MP (25fps)/12-channel1080P (60fps)/24-channel1080P (30fps)/36-channel720P (30fps) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Output | 1-channel VGA output, 3-channel HDMI output, VGA 1/HDMI 1 outputs the same video source
Supports 4K output |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Multi-screen Display | Customized display
Max. 36-channel local live view Max.16-channel PCAPP live view |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Third-party Support | Onvif, RTSP, Sony, Panasonic, Axis, Arecont, Pelco,Canon, Samsung | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating System | Embedded Linux OS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operation Interface | WEB(PCAPP), local GUI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression | Smart H.265+/Smart H.264+/H.265/H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression | G.711A/G.711U/PCM/G726 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protocol | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Phone | DMSS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability | ONVIF (Profile S, T and G), CGI, SDK | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser | Chrome, PCAPP, IE9 or higher, Firefox | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Mode | NIC binding mode such as multiple-address mode, load balance, fault-tolerance, etc | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Record Playback | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Multiple-channel Playback | Max. 16-channel playback | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Record Search | Search video detection/manual record/IO alarm/intelligent event/all record file | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Medium | Internal HDD, SAS disk array enclosure | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Backup Method | HDD, peripheral USB storage device | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Playback Function | Play, pause, stop, fast forward, fast backward, reverse play, frame by frame play
Full-screen, backup (clip/file), snapshot, digital zoom, audio on/off |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HDD Group | 24 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAID | RAID 0/1/5/6/10 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Pool | N/A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General Alarm | Motion detect, tampering, local alarm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Anomaly Alarm | IPC offline alarm, storage error, HDD full, IP conflict, MAC conflict, login lock, AI module temperature alarm, AI module offline, fan malfunction | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligent Alarm | Human face detection, human face recognition, video metadata (person/vehicle/non-motor vehicle), IVS, plate recognition, people counting, smoking, call | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Linkage | Record, snapshot (full image), local external alarm output, IPC external alarm output, access & control, audio prompt, buzzer, log, preset, email | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Peripheral Interface | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input | 1-channel (reserved) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output | 1-channel, speaker output, audio linkage output | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Input | 16-channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output | 8-channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Internal HDD | 24 slots, SATA3.0/SAS. Max.16T/HDD | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
eSATA | 1 port | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SAS | 2 SAS3.0 ports | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-232 | 1 port, for debug or transparent COM data | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-485 | 1 port, control peripheral PTZ and so on
Supports various protocols |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB | 4 ports
2 USB2.0 port at the front panel and 2 USB3.0 port at the rear panel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HDMI | 3 ports; support 4K output | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VGA | 1 port | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network | 4 RJ-45 10/100/1000Mbps self-adaptive Ethernet ports | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power | 1 port | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE | N/A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General Parameters | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | 100V AC–240V AC 50±2%Hz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | 120W (without HDD, idling)
408W (all HDDs connected) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 17 kg (37.48 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 18 kg (39.68 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions
(W × L × H) |
Chassis: 446 mm × 514.5 mm × 175 mm
(17.56 ” × 20.21 ” × 6.89 “) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions
(W × L × H) |
689 mm × 779 mm × 552 mm
(27.13 ” × 30.67 ” × 21.73 “) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Conditions | 0 °C to +45 °C (+32 °F to +113 °F)/10%RH–90% RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Strorage Conditions | 0 °C to +40 °C (+32 °F to +104 °F)/30%RH–85% RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Altitude | 5000 m (16404.20 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation Mode | Desktop/rack | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN55024,EN55035, EN50130-4,EN60950-1 FCC: Part 15 Subpart A UL: 60950-1 and CAN/CSA C22.2 No. 60950-1-07 |

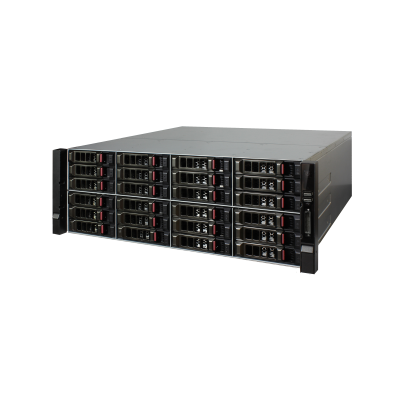

Dahua IVSS7024-8I 4U 24HDD WizMind Intelligent Video Surveillance Server Price in Dubai, UAE and Africa
> Industry embedded micro-controller
> Max 512Mbps incoming bandwidth
> 256-channel IP video access
> Up to 128-channel perimeter protection
> Up to 64-channel face recognition with normal IPC
> Up to 160-channel face recognition with face detection IPC
> Up to 32-channel video metadata
> Up to 50 face databases with 300,000 face pictures in total
> Supports RAID 0/1/5/6/10
> 3 HDMI/1 VGA video output
