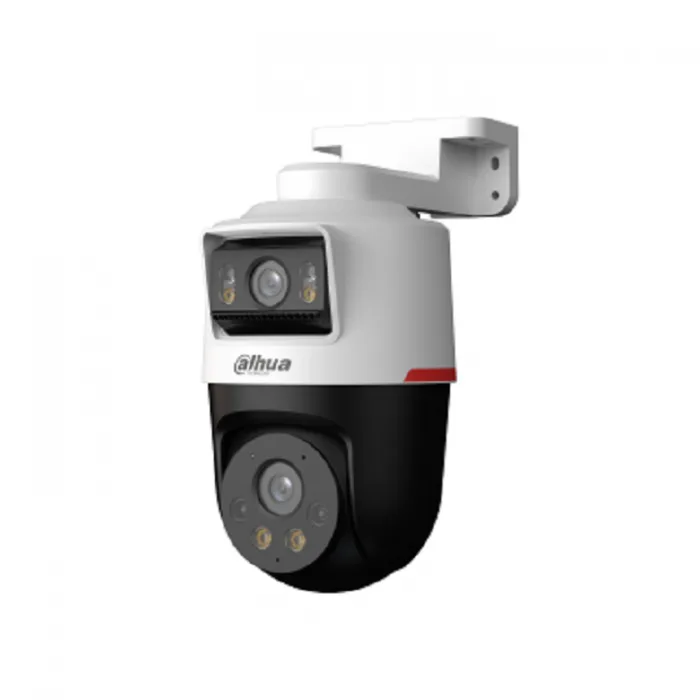

DAHUA Dahua IPC-PTS2249B-E2-S-PV-PRO
Camera
Image Sensor Channel 1 (PT Lens): 1/2.9″ CMOS
Channel 2 (Fixed Lens): 1/2.9″ CMOS
Max. Resolution Channel 1 (PT Lens): 1920 (H) x 1080 (V)
Channel 2 (Fixed Lens): 1920 (H) x 1080 (V)
ROM 128 MB
RAM 256 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.0006 luxF1.0
S/N Ratio >56 dB
Illumination Distance Up to 30 m (98.43 ft) (Warm light)
Illuminator On/Off Control Auto; Manual
Illuminator Number 4 (Warm light)
Audio
Built-in MIC Yes, built-in Mic
Built-in Speaker Yes, built-in speaker
Audio Compression G.711a; G.711Mu; PCM; G.726
Environment
Operating Temperature –40 C to +50 C (–40 F to +122 F)
Operating Humidity <95% (RH), non-condensing
Storage Temperature –40 C to +50 C (–40 F to +122 F)
Storage Humidity <95% (RH), non-condensing
Protection IP66
Download Dahua IPC-PTS2249B-E2-S-PV-PRO Datasheet
